Innovative Solutions Grinding Machine with Syntec CNC and Server Propel

Product Description

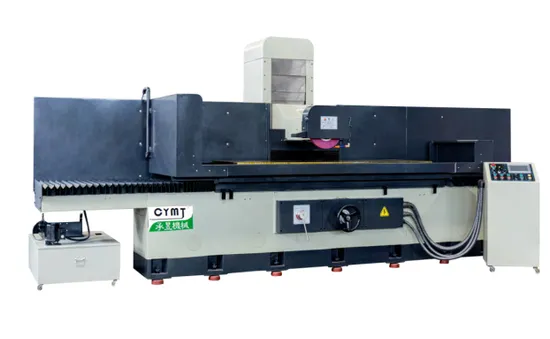

250/2550CNC Surface Grinding MachineUnleash the potential of precision engineering with our Three Axies 250CNC Multifunction Grinding Machine Tool, crafted for unparalleled accuracy and multi-functional prowess.
Our commitment to excellence drives a policy of continuous improvement in all our products. We reserve the right to enhance specifications, mechanics, or designs at any given time, ensuring our offerings remain cutting-edge without prior notice or obligation.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Cheng Yu Machinery Technology Co., Ltd., proudly founded in Dongguan City, Guangdong Province, brings over 30 years of Taiwan's rich grinding machine manufacturing heritage. Our team of skilled technical personnel carries forward this legacy of technological excellence. The CNC machine tool industry is undergoing a revolution characterized by rapid advancements. The drive towards high-speed, precision, composite functions, intelligence, openness, parallel drive, networking, and green sustainability is shaping the future direction and development trends of CNC machine tools. Dongguan Chengyu Machinery Technology Co., Ltd. stands as a beacon of expertise in crafting machine tools and accessories. Adhering to our 'technology, innovation, reliable' ethos, we promise 'meticulous' quality and strive to deliver premium products and services. Our focus begins with understanding clients' processes, technological needs, and production requirements, ensuring design and production technology are the cornerstones of our offerings. This approach enhances product applicability, expands CNC industry space, and achieves high automation, precision, and quality, backed by a robust quality management system, state-of-the-art equipment, and exceptional craftsmanship. To meet market demands, Chengyu Machinery has honed its expertise in the design and manufacture of high-precision CNC surface grinding machines, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. We also excel in crafting industrial robots, automated production lines, and integrated applications. Below is a concise introduction to our CNC grinding machine series: I. HS Series: Models 618 / 250 / 3060 / 4080 / 40100 available in both servo and hydraulic types. Processing Capacity: Expertly handles surface grinding and grooving tasks. Advanced Patented Hydraulic Control System (exclusive to hydraulic type). Functionality: Comes equipped with sophisticated grinding programs for flat surface and groove cutting. Feed Mode Options: Choose from front, back, left, or right feed modes, with each grinding program memorizing your selected feed mode. Innovative Grinding Wheel Protection: Automatic shutdown feature upon wheel overload. II. Series is available in both servo and hydraulic types. Processing Capacity: Capable of surface grinding, grooving, and combined scheduling for comprehensive use. Exclusive Patented Hydraulic Control System (hydraulic type only). Functionality: Featuring a diverse array of grinding programs, including surface and groove cutting, sole and side grinding, as well as unequal distance and depth displacement grinding. Grinding Wheel Dressing: Enhanced bottom plane dressing with automated rough and fine grinding adjustments, perfectly set for seamless grinding cycles with automatic dressing and compensation. Feed Mode Options: Select from front, back, left, or right modes, with each program remembering your preferences for efficient operation. Equidistant grooving option, complemented by non-equidistant unequal patterns. 3. Four-axis CNC Grinding Machines: Choose from our horizontal or vertical types for your specific needs. Processing Types: Offers arbitrary equal division and advanced skipping tooth processing. Precision Waist Circle Processing: Simply input AB size for seamless operation. Efficient Triangle Fillet Processing: Enter inscribed circle size B and fillet size R for accuracy. Quadrilateral Fillet Processing: Input side lengths A and B alongside fillet size R for precision crafting. Eccentric Circle Processing: Enter eccentricity along with starting and ending diameters to achieve desired results efficiently. Circle: Seamlessly input both starting and ending diameters with precision Arc: Effortlessly enter the arc size alongside the rotation angle for optimal results Step Difference & Rotation Profile: Configure to perfection with ease Processing Schedule: Save as a processing file for effortless future access and streamlined operations
