Hot Sale Exhaust Fan with Cooling Pad Wall Paper Evaporative Cooling Pad

Product Description

Poultry Farm Cooling padHigh quality paper and glue, color and size can be customized.

Series No.	Features
1	Pad Model: 7090, 7060 or 6090
2	Coated color: can be customized
3	Glue: High quality glue
4	Paper weight: 95g or 105g per square meter,China top brand paper
5	85 layers per 1500px width
6	Warranty: 5 years

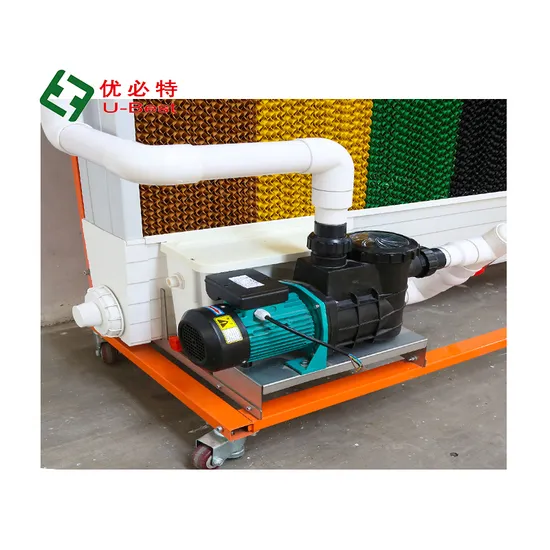

Cooling pad systemThis system uses water evaporation effect to cool down the air going through papers . It works effectively combination with tunnel ventilation fans to keep temperature under 30°C.
1. Deep PVC or Aluminum frame .
2. Coated color can be customized . pad model is 7090, 7060 or 6090.
3. Automatic water replenishing device , save investment for customers in water reuse system .
Company Profile
Weifang U-Best Husbandry Equipment Co.,Ltd:
We are professional leading manufacturer and supplier of poultry equipment in China!

Our equipment has passed ISO9001:2008 Quality Management System Certification ,CE and PC Certification By SGS/Soncap/SASO!

We have our own production line so we can control the quality very well! Our poultry equipment has been exported to more than 40 countries and have good market reputation!

We have many different project of chicken farm in Sudan, Saudi Arabia, Algeria, Nigeria, Zimbabwe, Mozambique, South Africa, Tanzania, Zambia, Philippines, Indonesia, India, Uzbekistan, Bahrain, Bangladesh, UAE, Lenanon, Palestain, Qatar, Kosovo, Pery, Columbia, Honduras, Dominica Republic, Paraguay, Ecuador, Costa Rica, Argentina, Greece, Spain, Australia and Fiji etc. .



A Complete Set Automatic Poultry Equipment for Farming Chicken Includes The Following Parts:
(1) main feed line of silo;
(2) pan feeding line system;
(3) nipple drinking line system;
(4) ventilation system;
(5) cooling pad system;
(6) climate and power controller system;
(7) fogger spraying and disinfection system;
(8) heater;
(9) curtain for two side walls of open type chicken house.
Poultry Farm Machine - Modern Design Fully Automatic Control

Professional Service

Our Services For Your Project of Automatic Poultry Equipment for Farming Chicken :
1. Poultry Equipment: produce and supply first-class Quality poultry equipment with Good Price;
2. Poultry Farm: select location, design and construction preparation guidance;
3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate our equipments and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.
Poultry Machine - Chicken Farm - Fully Automatic Modern Design

Automatic nipple drinking system:

(1). Function:
The system can provide clean and fresh water to broiler chickens steadily, the water will be out when birds touch nipples.
Our nipple's rod can be movable in 360 degrees, easy to drink.

(2). Components:

Name	Features
Waterline front system	This front part is controller of water, it's main function is to adjust water supplying pressure and stabilize drinking volume, which is usually installed in control room, include: *Pressure regulating valve-make sure to supply stable water to drinking lines; *Filter-clean water and avoid blocking nipples; *Water meter-measure water usage volume. *Doser/Medicator-add medicine to drinking system automatically to prevent disease.
Pressure regulator	NEW DESIGN Good regulating stability, high switching performance; Water supply is sufficient&equality; Recoil cleaning with good cleaning result, save time and water; Good quality movable valve, easy to change.
Nipple drinking lines	Nipple: The outside shell is made of high quality plastic, the inner rod is made of high quality stainless steel. a. All nipples are anti-corrosion, service life over 10 years. b. Double-sealing structure, avoids water leakage and its bad influence to chicken house. c. Birds can drink from 360 degrees, easier to drink. d. Meeting drinking demand of different-period chickens. Drip cup: Single-arm design is more suitable for modern chicken raising idea. Square water pipe: lower possibility of water accumulation than round water pipe Drinking line specification: 15 nipples/3m, 12 nipples/3m
Water display level tube	Use high transparency and impact resistant material, sturdy and durable, convenient to watch water level.
Lifting&suspension system	Correct drinking line height js very important for chicken, both higher and lower can lead to chicken bone's distortion, which is bad for chicken growth, also waste water. It's very easy to adjust drinking line height by winch.

Automatic pan feeding system:

(1). Function:
The system can convey feed from vice hopper(feeding line hopper) into each feed pan automatically. We usually install
one sensor inside one feed pan which is near to the motor end. When sensor doesn't touch feed, driving motor will start
working and convey feed, when sensor touchs feed, driving motor will stop working.

Name	Features
V-shape bin(with hopper)	Bin volume:70-90kg, Material:hot-dip galvanized sheet Material thickness:1mm
Driving motor	Taiwan brand Power:0.75Kw/1.1Kw/1.5Kw, Voltage:380V/220V/others Three-phase/Single-phase, Frequency: 50Hz, AC current
Pan feeding lines	Feed pipe: Diameter of feed pipe: Φ45mm Material: hot-dip galvanized sheet pipe with >275g/m2 zinc coating amount Helical spring auger: imported from South Africa, feeding ability: 450Kg/h Feed pan: 14 grilles, pan bottom diameter-330mm, material-pure engineering plastic a. Different gears of feed amount, meeting eating demands of different period chickens. b. Accurate and quick to adjust feed flow, the principle is to catch two ears in the inner and pull them out adjust up and down. c. The pan bottom can be disassembled on the ground, which can be used for day-old chicks. d. V-shape plate design can reduce feed storage on bottom, so birds can always eat fresh feed, which also prevents birds staying on the plate for a long time. e. The edge of pan plate tilt towards the center, which avoids waste of feed, the smooth edge prevents birds craws hurting and make sure safe and comfort feeding. Feeding line specification: 4 feed pans/3 meter, 3 feed pans/3 meter
Sensor	Imported from Germany time delay range: 0-2hours
Lifting&suspension system	It's very convenient to adjust feeding line height by winch.

Packaging & Shipping
Standard export package of poultry equipment for export is in container. Shipment in 15 days after the order confirmation.

1. silo: disassembled, spare parts in carton box, galvanized sheet in bunch and in bulk;

2. feeder: pan feeder in carton box, feed pipe in bunch in bulk; hopper in bulk;

3. water: pipe fitted with nipples in plastic bag, cups and spare parts in carton box; support pipe: in bunch in bulk;

4. fans: disassembled way or assembled way;

5. air inlet: carton box;

6. cooling pad: assembled with aluminium frame, or disassembled;

7. heater: in carton box

8. fogging system: spraying engine in carton box, spare parts in carton box

9. enviroment control: In carton box;

FAQ

FAQ:
1. Q: I need a complete set poultry equipment, and also need a best price, what should I do?

A: pls let us know:
(1). Chicken House Size (length x width x height).
(2). If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
(3). If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
(4). Maximum and Minimum Temperature of Farm Location.
(5). House Type: close type of two side bricks building wall with 36" fans and air inlets, or open type of using curtain in two sides.

2. Q: what's the material of feeding pan and feeding pipe?

A: the material of feeding pan is 100% PP.
the material of feeding pipe is galvanized pipe.

3. Q: how long is the life of your products?
A: more than 15 Years.

4. Q: Do you have any certificate?
A: ISO9001: 2008/CE/PC Certification By SGS/Soncap/SASO.

5. Q: Sample available?
A: yes. but the client pay for the freight fee.
