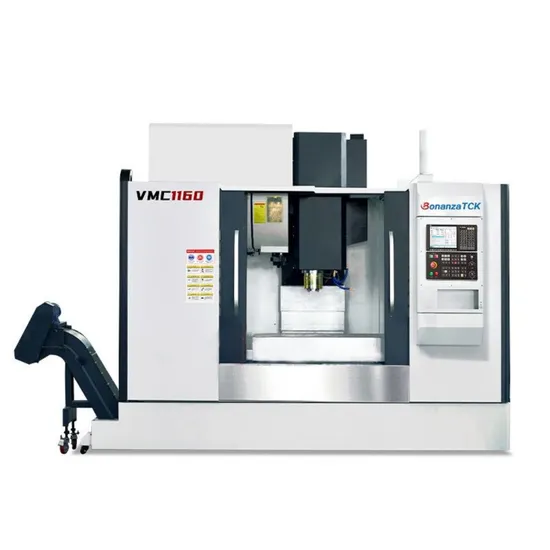

Heavy-Duty Vertical Machining Center Machine Vmc1160 for Metal Milling

Product Description

Heavy Duty CNC Machining Center Machine Tool VMC1160 Suitable for Metal Milling Product Description

1,Traffic models with large product batches and monthly sales of 200 units+
2,The market is very mature, and essential machine models for machining
Product Parameters

		SPESIFIKASIE	UNIT
		VMC1160
Work table	Worktable size	1200×600	mm
	Worktable max.load	800	kg
	T-slot (number*width*distance)	5-18-100	mm
Travel	X-axis travel	1100	mm
	Y-axis travel	600	mm
	Z-axis travel	600	mm
	Distance from spindle nose to table surface	120-720	mm
	Distance from spindle center to column guideway	650	mm
Spindle	Spindle taper	BT40-150
	Spindle speed	8000	r/min
	Spindle motor	11	kW
Feed Speed	X/Y/Z-axis rapid feed	36/36/24	m/min
	Cutting feed speed	1-10000	mm/min
Tool magazine	Tools change way	Arm type ATC
	Tool number	24	pcs
	Tool change time	2.5	s
Precision	test standard	JISB6336-4:2000/ GB/T18400.4-2010
	Positioning precision	0.008	mm
	Reported positioning precision	0.005	mm
other	size	3100×2500×2800	mm
	weight	6500	kg

Detailed Photos

MACHINE CONSTRUCT 1. High strength high quality cast iron, 2. long span bed base and vertical column structure

PRECISION SPINDLE 1. Spindle taper is BT40, 2.Spindle speed 8000rpm, can enlarge to 10000rpm or 12000rpm 3.Spindle passed dynamic balance lSO rating test

LEAD SCREW 1. Lead screw bearing use S.KF/NACHI or NMC bearing

TAIWAN PRECISION LINEAR RAILS 1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μ 2. Brand: CSK Or TWIN

Company Profile

Certifications

Packaging & Shipping

FAQ

1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine , Vertical Machining Center ,Lathe Machines and so on . 3: Where is our factory located? How can I visit there? A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms? A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight . 6: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set ) 7: What about your warranty? A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free 8:How do you offer after-sale service? A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
