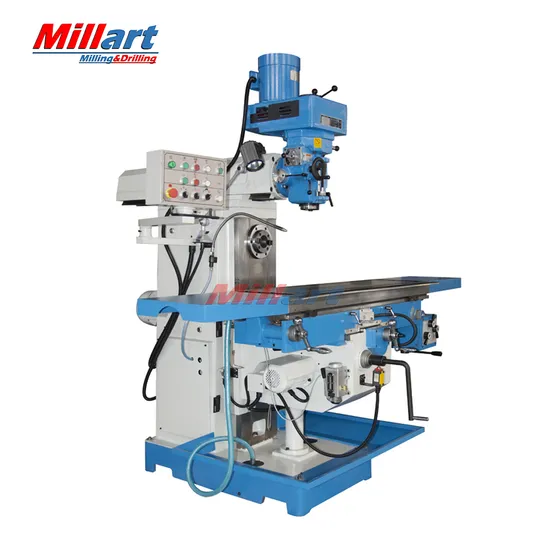

Turret Milling Machine X6336 High Quality Turret Mill for Sale
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6336
Type
Turret Milling Machine
Object
Tool
Structure
Lifts
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
360X1500
Transport Package
Wood Case
Specification
CE ISO900 rohs
Trademark
L & T
Origin
Tengzhou China
HS Code
84595900
Production Capacity
100 PC/Month
Product Description
Turret Milling Machine X6336 High quality Turret Mill For SaleFeature:
1, Heavy, solid model made of high-grade Meehanite casting
2, Solid rectangular slide ways for Y, Z-axis
3, Mill head can be swivel Right-left 90 degree
4, High speed and high precision mill head from Taiwan
5, Automatic spindle sleeve feed
6, X,Y axes auto power feed
7, Z axes motorized lifting
Technical parameter:
| Specification | Unit | XL6336 |
| Spindle taper | ISO40(VERTICAL) ISO50(HORIZONTAL) | |
| Spindle travel | mm | 140 |
| Sleeve feed | mm/r | 0.04/0.08/0.15 |
| Distance from vertical spindle to column | mm | 200-600 |
| Distance from vertical spindle to table | mm | 180-530 |
| Distance from horizontal spindle to table | mm | 0-400 |
| Distance from horizontal spindle to arm | mm | 230 |
| Spindle speed range | r/min | 66~4540/16(vertical) 60~1800/12(horizontal) |
| Table size | mm | 1500×360 |
| Table travel | mm | 1000×320×400 |
| Range of longitudinal,cross travel | mm/min | 15~370/(MAX.540) |
| Up/down speed of table | mm | 590 |
| T of table(N0./WIDTH/DISTANCE) | mm | 3/18/80 |
| Main motor | kw | 3.7(vertical)4(horizontal) |
| Motor of table power feed | kw | 0.75 |
| Up/down motor of headstock | kw | 1.1 |
| Coolant pump motor | kw | 0.09 |
| Speed of coolant pumps | L/min | 25 |
| Overall dimension | mm | 2220×1790×2360 |
| N.W./G.W. | kg | 2340/2540 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X,Y axis auto power feed |
| Z axis motorized lifting |
| Mill arbors |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories:
| 3 axis DRO |
| Variable spindle speed |
| Air draw bar |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Rotary table HV10 |
| Dividing head F11-160A |
| Machine vice 160mm |
