Woodworking Machine Square Tube Dryer Machine for Plywood Making

Woodworking Machine Square Tube Dryer Machine for Plywood Making

US$30,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JGBY214×8/10-15I
Certification
CE, ISO
Heating Medium
Thermal Oil or Hot Steam
Heat Source
Boiler
Drying Capacity
1-2m3/Hour
Heating Way
Horizontal Circulation Vertical Jet
Transmission Way
Stepless
The Radiator
Steel-Aluminum Composite Structure
Working Layers
Customized
Veneer Feeding Way
Automatic
Main Electric System
Mitsubishi
Transport Package
Plastic Film
Specification
weight: 6000kg
Trademark
metro
Origin
China
HS Code
8419320000
Production Capacity
80 Sets/Year

Product Description

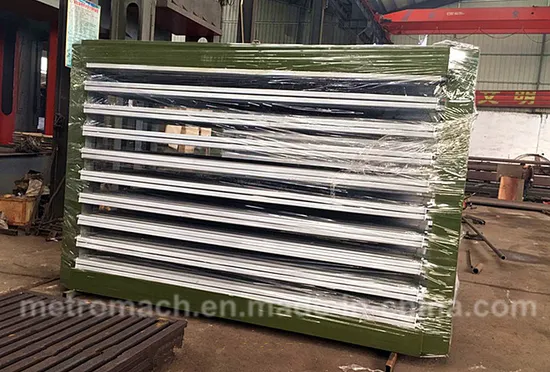

PHOTOS SHOW:
SPECIFICATION:
model JBGY214 x 8/10-15I
pressure 100KN
feeding direction horizontial
layers number 15
distance between layers 70mm
hot press platen number 16 pcs
platen size 2800 x 1340 x38 mm
cylnder number 2pcs
diameter 180 mm
feeding length 1050 mm
pressure endurance ≤ 6.3 Mpa
no-load closing time 23S
low pump flow about 40 L/min
power 5.5kw-4P
Size 4630 x 1340 x 2685 mm
weight about 6500 kg
heating medium heat conduction oil

For reference only. Take the actual situation as the criterion because of customized.
NOTE:
All our products can be customized according to different countries on the following facts:
1. Year production capacity.
2. Working shifts.
3. Automatic grade higher or lower.
4. Clients' personal requirements.
INTRODUCTION:
1.Equipped with top quality piston cylinders, mental tube and seamless steel pipes .
2. Characetrised by open only feed end and discharge end. The remaining is closed. Hot air streams inside the equipment. Low heat loss saving a lot of energy.
3. Flexible configuration. Drying more material in one time. Working continuously. Easy operation, labor.
4.Simple structure, easy installment. Workers can enter the box of equipment to check the bug. So maintance is conveninent.
CERTIFICATES:
SERVICES
PRE-SERVICE:
1) Provide the free consultation of the equipment.
2) Provide the standard device and the flow chart.
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory.
SERVICE DURING THE SALES:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment.
3) Train the first-line operator.
AFTER-SALES SERVICE:
1) 24 hours online service.
2) Provide the video with Install and debug the equipment.
3) Provide technical exchanging.
