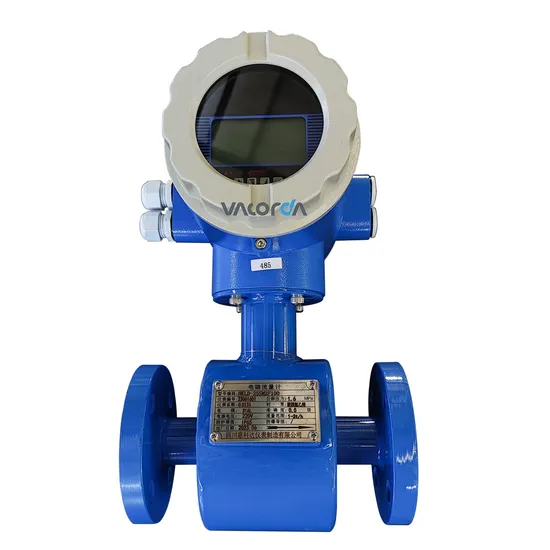

Petroleum DN800 Electromagnetic Flow Meter Magnetic Type

Product Description

Product Description
Why choose us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM, ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp provide 24-hour one-on-one technical support service online
Production Description Electric medium highly sensitive quality Electromagnetic flow sensor for industry is a fully intelligent electromagnetic flowmeter developed by our company using the most advanced technology at home and abroad. Its electromagnetic converter core adopts high-speed central processing unit. The calculation speed is very fast, the precision is high, and the measurement performance is reliable. The sensor adopts non-uniform magnetic field technology and special magnetic circuit structure, the magnetic field is stable and reliable, and the volume is greatly reduced, the weight is reduced, and the flowmeter is characterized by small flow. Application:
Product features
1. No moving and blocked flow parts in the pipeline, almost no additional pressure loss in the measurement.
2. Measurements results are independent of physical parameters, such as flow distribution, fluid pressure, temperature, density and viscosity.
3. On-site modification of the measuring range available.
4. LCD display, easy to use and simple to operate.
5. Using SMD devices and SMT technology.
6. Using 16-bit embedded processors with fast speed and high accuracy, enhancing the stability of measurement.
7. Anti-interference, reliability, measurement range up to 150:1.
8. Ultra low EMI switch, wide range of power supply voltage.
9. RS485, RS232, Hart and Modbus digital communication signal output.
10. Self-checking function.
Detailed images
Product Parameters

PTFE Lined Pipe:	10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600
Rubber Lined Pipe:	40, 50, 65, 80, 100, 125, 150, 200, 300, 350, 400, 500, 600, 800, 1000, 1200, note: special specifications can be customized
Flow direction:	positive and negative, net flows Turndown
Measuring range ratio:	150:1
Accuracy:	piped: 0.5 class, 1.0 class
Measured medium temperature:	Common rubber lining: -20~+60 ° c High temperature rubber lining: -20~+90 ° c PTFE lining: -30~+100 ° c High temperature vinyl lining: -30~+180 ° c
Rated working pressure:	pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa; DN200~DN1200: ≤ 1.0MPa
Flow measuring range:	flow measuring range corresponding to flow rate range is 0.3~15m/s
Measured fluid conductivity:	5μs/cm (Most with water as the composition of the medium, its conductivity in the range 200~800 Mu s/cm, optional
Repetitive error	+/-0.1%
