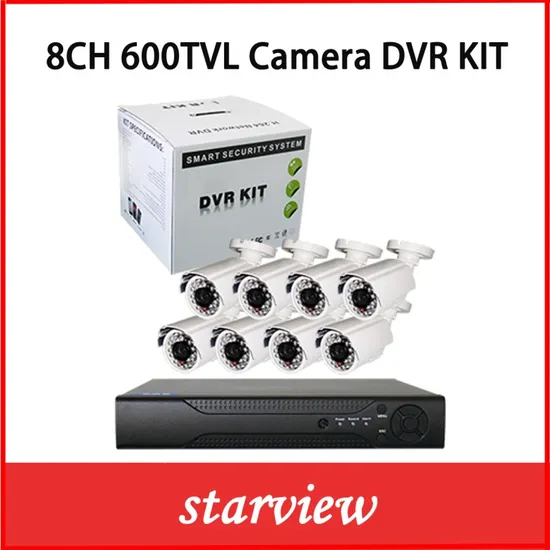

Surveillance 8CH 600tvl Security Bullet IR Camera CCTV DVR Kit (SV-DK08W2C60)
Basic Info.
Model NO.
SV-DK08W2C60
Compressed Format
H.264
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
8 Channel
Audio Input/Output
4 Channel
Remote Control
With Remote Control
Protection Level
Water-Proof IP66
Support
15 Kinds of Languages
Resolution
600tvl
IR Distance
20m
Transport Package
Carton Packing
Specification
CE, FCC
Trademark
OEM
Origin
Shenzhen China
HS Code
8525801390
Production Capacity
50, 000PCS/Year
Product Description
DVR:H.264 main profile compression
8ch full D1 real-time coding recording
Support iPhone, Windows mobile, Blackberry, Symbian, Android.
Support TV, VGA, HDMI output synchronously
Support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP,EMAIL
Support 3322, Dyndns, Oray, Myq-see,etc Domain name service.
Support 1 SATA interface up to maximum 3TB HDD. Support 2 USB2.0.
Support 15 kinds of languages such as English, Finnish, French, German, Greek, Italian, Japanese,
Polish, Portuguese, Russian, Spanish, Thai, S-Chinese,T-Chinese and Turkish
Easy operation GUI.
Camera:
1/3 CMOS DSP Sensor
Resolution 600TVL (700TVL,800TVL,1000TVL Optioanl)
Minimum illumination:0.1Lux/F1.2(0Lux IR ON)
ICR cut,day and night control
24PCS,Ø5 LEDS,IR Distance 20M
3.6/4/6mm Fixed lens
Water-proof IP66
Packing
1.IR Camera*4
2.4CH Full D1 DVR*1
3.Power DC12V/3A *1
4.20M Power&Video Cable Line*4
5.Mouse*1
6.CD dish*1
7.Quick Installation Guide*1
8.Screws
| Model | SV60-DK08W2C60 |
| DVR Specifications | |
| System | |
| Operating system | Embedded LINUX |
| System Resources | Pentaplex function:live,recording,playback,backup & remote access |
| User Interface | GUI,on-screen menu tips |
| Display | 1/4 |
| Video | |
| Video Standard | PAL(625 line,50 f/s);NTSC(525 line,60 f/s) |
Monitoring quality | PAL ,D1(704×576);NTSC,D1(704×480) |
| Playback quality | D1/HD1/CIF/QCIF |
| Total frame rate | D1:PAL 100/120fps |
| Video Input | 8ch |
Video Output | 1BNC, 1 VGA,1HDMI |
Audio | |
Compression standard | G711A |
| Audio Input | 4ch |
| Audio Output | 1ch |
| Voice Intercom | Support |
| Video recording and playback | |
| Recording mode | Manual>Alarm>Video Detection>Continuous |
| Local playback | 4ch |
| Video Query | Time/Date, Alarm, Motion Detection & exact search ( accurate to second) |
| Storage and backup | |
| Take up hard disk space | Space Occupation,CIF:5G/day@channel,D1:20G/day@channel |
| Video Save | Hard disk,USB ,HDD,Network |
| Backup | USB,HDD,Network |
| Interface | |
| Alarm Input/Output | No |
| Network Interface | RJ45 10M/100M |
| PTZ Interface | NO |
| USB Interface | 1 USB 2.0 port,1 USB MOUSE |
| HDD Interface | 1 SATA port ( Maximum 2T SATA HDD ) |
| Automatic Switcher | NO |
| 12V output | NO |
| Network | |
| Network Interface | RJ45 10M/100M |
| Network Protocol | Supports TCP/IP, DHCP,DDNS |
| Internet Viewing | Internet Explorer 6 or Higher |
| Mobile Phone Viewing | Symbian, Windows Mobile, iPhone, Blackberry and Android Phone |
| General | |
| Power supply | 12V/2A |
| Power consumption | <15W(without hard disk) |
| Operating Temperature | 0°C -+55°C |
| Humidity | 10%~90% |
| Dimensions | 34*9.5*27cm |
| Weight | 1.5KG(without hard disk) |
| Camera Specifications | |
| Video | |
| Image Sensor | 1/3 CMOS DSP Sensor |
| pixels | PAL : 712(H)x582(V) NTSC : 712(H)x492(V) |
| Sync system | Inter line Synchronization |
| Horizontal resolution | 600TV line |
| Minimum illumination | 0.5LUX/0LUX(LED ON) |
| S/N Ratio | More than 48dB (AGC off) |
| Gamma characteristic | 0.45 |
| Day&Night | Auto IRCUT Switch |
| AGC | Auto |
| White balance | Auto White Balance(AWB) |
| AGC | Auto |
| B. L. C | B. L. C Back Light Compensation (Auto) |
| Electronics shutter | PAL: 1/50~1/100, 000 sec |
| Video output | 1Vp - p75 ohms, Negative |
| GENERAL | |
| LENS | 3.6MM/4MM/6MM |
| IR LEDS | 24PCS,Ø5 LEDS |
| IR Distance | IR range 20m |
| Power input | DC12V |
| Operation temperature | - 10 ° C~+45 ° C RH95%Max |
| Storage temperature | - 30 ° C~+60 ° C RH95%Max |
