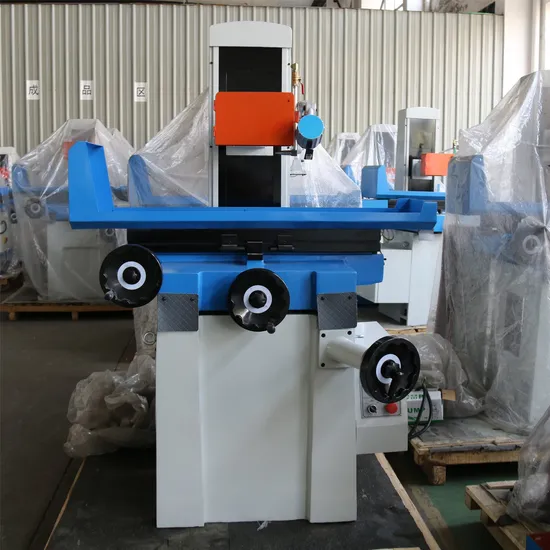

Small Metal Precision MD618A MD820 MD1022 Electric Grinder Machine with price

Product Description

Small Metal Precision MD618A MD820 MD1022 Electric Grinder Machine with price
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters
Product main technical parameters:

Specifications

Units

MD618A

MD820

MD1022

workbench

Worktable size (L * W)

mm

460×180

480×200

540×250

Max. travel of table

mm

500×190

530×220

560×260

Table T slot (slot number x slot width)

mm

1×14

1×14

1×14

Grinding head

The grinding wheel size (o. d * w * i. d.)

mm

φ180×13×Φ31.75

φ200×20×Φ31.75

φ200×20×Φ31.75

Distance spindle center line to working table

mm

335

440

420

Grinding wheel speed

50HZ

r/min

2850

2850

2850

60HZ

r/min

3440

3440

3360

The amount of feed

Table longitudinal (left and right) speed

m/min

3-20

3-20

3-20

Transverse (front and rear) feed handwheel feed

Continuous (stepless)

mm/min

300

300

400

Intermittent (stepless)

mm/min

0-5

0-5

0-5

Handwheel per turn

mm

2.5

2.5

4.0

Handwheel per lattice

mm

0.02

0.02

0.02

The vertical (up and down) feed handwheel feed

Handwheel per turn

mm

1.25

1.25

1.25

Handwheel per lattice

mm

0.01

0.01

0.01

Reversing feederX- feeder output speed

Total input power

W

150

150

150

X- feeder output speed

r/min

0-225

0-225

0-225

X- feeder size

mm

280×130×120

280×130×120

280×130×120

Y- feeder output speed

r/min

0-120

0-120

0-120

Y- feeder size

mm

280×130×120

280×130×120

280×130×120

Motor power

Spindle motor

kw

1.1

1.1

1.5

Cooling motor

W

40

40

40

working accuracy

The process surface of the base level of the parallel degree

mm

300:0.005

300:0.005

300:0.005

Surface roughness

μm

Ra0.32

Ra0.32

Ra0.32

Machine weight

Net weight

kg

667

767

880

Gross weight

kg

767

867

980

External size (L * w * h)

mm

1550x1150x1590

1680x1140x1760

1680x1140x1760

Packing size (L * w * h)

mm

1000x1150x1760

1140x1250x1940

1200x1400x1940

Detailed Photos
