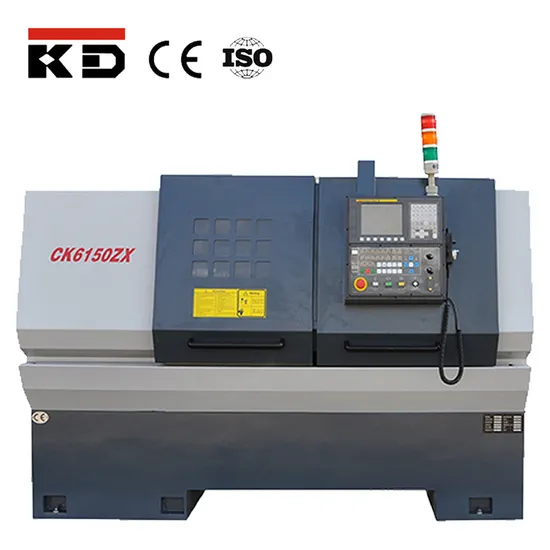

Ck6150zx Servo Motor Horizontal CNC Lathe
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CK6150ZX
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing
400mm
Spindle Bore
80mm
Spindle Speed
100-2000r/Min
Tool Post
4 Way Is Standard, 6 or 8 Way Is Optional
Spindle Nose
D8
Delivery
45 Days After Order Confirmed
Transport Package
Export Wooden Case
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100
Product Description
PRODUCT SPECIFICATIONS
| MODELS | CK6140ZX | CK6146ZX | CK6150ZX |
| CAPACITY | | | |
| Max.swing over bed | Ф400mm | Ф460mm | Ф500mm |
| Max.swing over carriage | Ф210mm | Ф240mm | Ф280mm |
| Max. length of workpiece | 750/1000/1500mm | 750/1000/ 1500mm | 1000/ 1500mm |
| Max.turning length | 600/850/1350mm | 600/850/1350mm | 850/1350mm |
| 6-way turret Max.turning length | 430mm | 430/680/ 1180mm | 680/ 1180mm |
| 6-way turret Max.turning diameter | 280mm | 340mm | 340mm |
| TRAVEL | | | |
| Max.cross travel(X) | 250mm | 280mm | 280mm |
| Max.longitudinal travel(Z) | 710/960/1460mm | 710/ 960/ 1460mm | 960/ 1460mm |
| FEED | | | |
| Rapid feed for axis X | 8m/min | 8m/min | 8m/min |
| Rapid feed for axis Z | 10m/min | 10m/min | 10m/min |
| SPINDLE | | | |
| Spindle nose | D8 | D8 | D8 |
| Spindle bore | Ф80mm | Ф80mm | Ф80mm |
| Taper bore of spindle | M.T.NO.7 | M.T.NO.7 | M.T.NO.7 |
| Steps of spindle speed (manual) | Variable | Variable | Variable |
| Range of spindle speed | 100~2000rpm | 100~2000rpm | 100~2000rpm |
| TOOL POST | | | |
| Tool post stations | 4-way, 6-way, 8-way | | |
| Tool cross section | 25×25mm | 25×25mm | 25×25mm |
| TAILSTOCK | | | |
| External diameter of tailstock sleeve | Ф75mm | Ф75mm | Ф75mm |
| Taper bore of tailstock sleeve | M.T.NO.4 | M.T.NO.5 | M.T.NO.5 |
| Max travel of tailstock sleeve | 130mm | 130mm | 130mm |
| OTHERS | | | |
| Min. input | 0.001mm | 0.001mm | 0.001mm |
| Main motor power | 5.5kw (optional 7.5kw) | 5.5kw (optional 7.5kw) | 5.5kw (optional 7.5kw) |
| Coolant pump power | 75w | 75w | 75w |
| Overall dimensions(L×W×H) | 2060×1180×1500mm | (2060/ 2310/ 2790)×1180×1500mm | (2310/ 2790)×1180×1500mm |
| Net weight | 2100kg | 2200, 2350, 2900kg | 2350, 2900kg |
