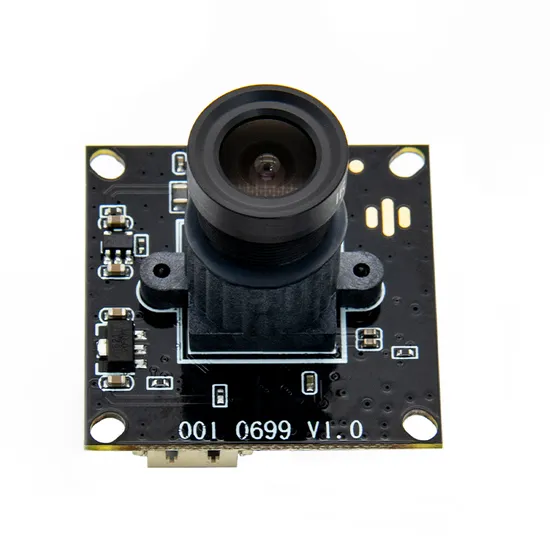

Customzied 1280*720 at 60fps 1/4" CMOS Ominivision Camera Sensor Module in Global Shutter for High Speed Montion Capture

Product Description

Customzied 1280*720 at 60FPS 1/4" Cmos Ominivision Camera Sensor Module in Global Shutter for High Speed Montion Capture
Description: Hampo 003-0699, is a HD Monochrome (Black & White) global shutter camera for accurate and fast capture of moving scenes at 60 fps in 720p resolution. This Global shutter USB camera features OV9281 CMOS Image Sensor with pixel size of 3.0 x 3.0 µm and a dedicated high-performance Digital Signal Processor (DSP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This global shutter camera captures images at a high frame rate, which helps to minimize frame-to-frame distortion and reduce motion blur while capturing fast-moving objects to produce smoother images with greater scene details.
Both global shutter and high frame rate make it suitable for applications such as Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Gesture Recognition, Robotic Vision, Drones, Barcode Scanner, Factory Automation, Conveyor Monitoring Cameras, and Traffic Monitoring Systems.
Feature
Based on 1MP monochrome (black&white) global shutter sensor OV9281, assembled with a 105°(D) 99°(H) low distortion M12 lens without IR pass filter, sensitive to IR.
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, support trigger via external signal.
HD Resolution: 1MP (1280H x 800V) HD definition 60fps at per second;
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.
Serial Number: Supports modifying the Serial Number. Specifications:

Camera
Model No.	003-0699
Max Resolution	1280*720P
Sensor	1/4" OV9281
Frame Rate	MJPG 60fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240, 60fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.
Pixel Size	3.0μm*3.0μm
Output Format	YUY2/MJPG
Lens
Focus	Fixed focus
FOV	D=105° H=99°
Lens Mount	M12 * P0.5mm
Focusing Range	3.3ft (1M) to infinity
Power
Working Current	MAX 200mA
Voltage	DC 5V
Physical
Interface	USB2.0
Storage Temperature	-20ºC to +70ºC
Operating Temp	-4°F~158°F (-20°C~+70°C)
PCB Size	32*32MM(Hole pitch compatible with 28x28mm)
Cable Length	3.3ft (1M)
TTL	22.7MM
Functionality and Compatibility
Adjustable parameter	Exposure/ White balance
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

Characteristic of Global Shutter
Global shutter mode in an image sensor allows all the sensor's pixels to start exposing and stop exposing simultaneously for the programmed exposure period during every image acquisition. After the end of the exposure time, pixel data readout begins and proceeds row by row until all pixel data has been read. This produces non-distorted images without wobble or skewing. Global shutter sensors are typically used to capture high-speed moving objects.It can be compared to conventional lens shutters in analog film cameras. Like the iris in the human eye they resemble lens aperture and are probably what you have in mind when thinking of shutters.
APPLICATIONS
Both global shutter and high frame rate make it suitable for applications such as Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Gesture Recognition, Robotic Vision, Drones, Barcode Scanner, Factory Automation, Conveyor Monitoring Cameras, and Traffic Monitoring Systems.
Company Profile: Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on. To meet customers' needs and ensure a timely delivery, Hampo has equipped 3 SMT lines, 5 module assembly lines and 8 PC camera lines. Those production lines can output 600K camera modules and 767k PC cameras monthly. Hampo has been certified and qualified by ISO quality organization in 2015 and awarded the title of National High-Tech Enterprise in 2019, besides this Hampo has registered more than 20 product patents. Hampo has three product series. Camera module series includes all kinds of video camera modules, MIPI video camera modules and DVP video camera modules etc. PC Cameras for different applications such as video conference, online classes and facing recognitions etc. OID devices for preschool education purposes, such as talking pen, smart pen and children's puzzle electronic products. As member of Hampo Family, we will adhering to the concept of "Market- Lead and Customer First"; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
FAQQ: Why choose camera module with global shutter?
A: If your cameras need to capture moving objects and rapid movement sequences, then shutter type is a crucial criterion alongside sensor technology in determining the quality of the images. Since the advent of global shutter technology in CMOS sensors, there is now a more individual and flexible choice of suitable sensor technology for your application.
Q:How does a global shutter sensor work? A: A global shutter exposes all lines of an image at the same time, 'freezing' the moving object in place. This prevents distortions, which makes global shutter technology the ideal choice for applications with moving objects and rapid movement sequences, including automatic license plate detection as part of traffic monitoring, for example.
.
Q: What advantages this camera module has? 1. High frame rates
2. High resolution
3. Crystal-clear images, even for very short exposures
4. Outstanding noise characteristics, even in poor lighting conditions
5. Broad dynamic range
6. High quantum efficiency of up to 70%
