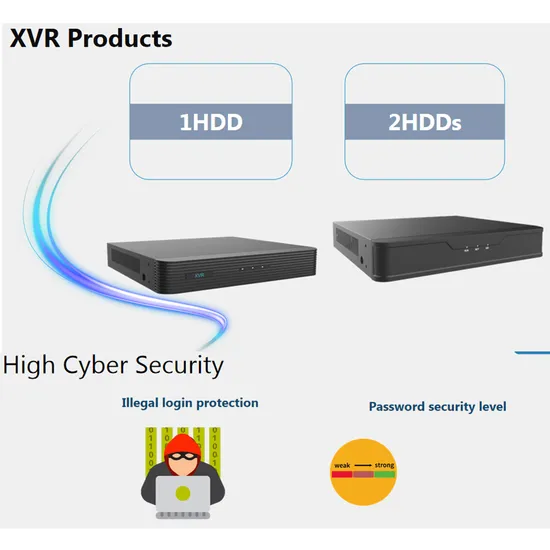

16CH Xvr Onvif CCTV DVR Hybrid Recorder 5mn 5in1 Xvr for Ahd Camera Analog Tvi Cvi Camera NVR for IP Cmaera Audio Over Coaxial

Product Description

Product Description
16CH XVR Onvif CCTV DVR Hybrid Recorder 5MN 5IN1 XVR for AHD Camera Analog TVI CVI Camera NVR For IP Cmaera audio over coaxial Key Features Support H.265/H.264 video formats Support audio over coaxial cable Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 16-channel BNC input Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 Long transmission distance over coaxial cable Product Parameters

Model	VCXVR-516UA1S
Video/Audio Input
Analog Video Input	16-ch, BNC
IP Video Input	8-ch(only IP up to 16ch), each channel up to 8MP
Supported Analog Camera Types	Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-ch, RCA
Network
Incoming Bandwidth	40Mbps (up to 56Mbps after all analog camera conversion)
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
VGA Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA
Synchronous Playback	16-ch
Encoding
Recording Resolution	5MP Lite/4MP Lite /1080P/1080P Lite/720P/D1/CIF
Recording Frame Rate	Main stream:	Sub stream:
	5MP Lite@6fps	D1@6fps
	4MP Lite@8fps	D1@8fps
	1080P Lite@15fps	D1@6fps
	720P@15fps	D1@10fps
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel:2 x USB2.0
Serial Interface	1 x RS485
General
Power Supply	12V DC Power Consumption: ≤ 10 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	260mm ×243mm× 39mm (10.1" × 9.6"×1.8")
Weight ( without HDD )	≤1.1 Kg ( 2.42lb )

Detailed Photos
