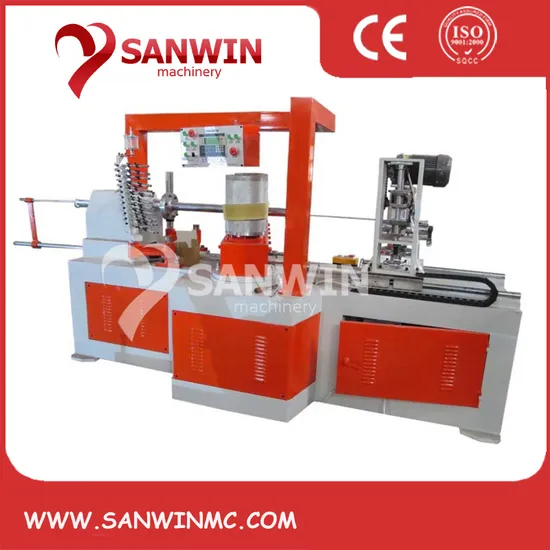

Automatic Spiral Paper Tube Core Making Winding Forming Machine

Automatic Spiral Paper Tube Core Making Winding Forming Machine

US$5,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SWJG-50
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
2-12
Reelpipe Speed
0-20m/Min
Wall Thickness of Paper Tube
1-5mm
Certification
CE
Condition
New
Winding Type
Two Heads
Inner Diameter
20-100mm
PLC
Delta,Taiwan
Servo Motor
Yaskawa,Japan
Inverter
Delta,Taiwan
Touch Screen
Taiwan
Voltage
3p, 380V, 50Hz
Weight
3200kgs
Dimension
5600*2250*2170mm
Power
4kw
Transport Package
as Requested
Specification
50
Trademark
SANWIN
Origin
Ruian, Zhejiang
HS Code
84418090
Production Capacity
500PCS/Year

Product Description

SWJG-50 Two-heads Paper Tube Making Machine
Descriptions:
SWJG-50 Small size tube & core making machine is suitable for Toilet Paper Cores;Preservative Film Cores and other paper tubes & cores.
-- PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be setup on the controlling panel (touch screen type) .
-- Single circular blade inline cutting system with cutting range 500-5000mm.
-- All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.
Technical Parameter:

Technical Parameter
 Control System
Paper Layer
 2-10 Layers
 PLC
 Xinjie
Inner Diameter
 20-100mm
 Man-machine Interface
 Touch Screen (Xinjie)
Wall Thickness
 1-5mm
 Inverter
 5.5KW Delta (Taiwan)
Winding Speed
 0-20 meters/min
 Execute Components
 CHNT
Winding Nose
 Two noses single belt
 Signal Components
 Hugong
Shaft Fixing Way
 Flange
 Pneumatic Components
 Jingwei
Cutting System
 Single Circular Blade
 Electric Components
 CHNT
Gluing Way
 Single / Double (can be chose)
 Configuration
Length fixing
 Infrared
 Paper Reel Stand
 10 Layers Cross Type
Operator
 1-2 persons
 Gluing System
 10 Layers Spraying Type
Speed Control
 By Inverter
 Inner Paper Shelf
 1 Set
Power Supply
 380V/3Phase/50Hz (can be customized)
Discharging Shelf
 1 Set
Size
 Belt
 2 Pieces
Mainframe
 2700*1600*1800mm
 Mandrel Shaft
 2 Pieces
Working Space
 7500*5000mm
 Belt Adjusting
 Manual
Weight
 1500kgs
 Paper Reel Stand & Gluing Shelf Adjusting
 Manual
Driving System
Main Motor
 4.0KW Wannan
 Automatically Gluing
 Gluing Pump 1.5kw
Motor Rotating Speed
 1400r/min
 Lubricating Oil for Paper Tape
 Automatically Supply
Nose Rotating Speed
 48r/min
Nose Output Strength
 3000N.m
 Enclosed Spare Parts
Reduction Box
 WPO135
 Extra Blades
 3 Pieces
Gear Box
 WPO135
 Useful Tool
 1 Set
Driving Chain
 16A*2

Sample:
Machine Photo:
- 10 Layers Spraying Glue System
-Cutting Part-servo synchronous tracking
Packaging & Shipping
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
