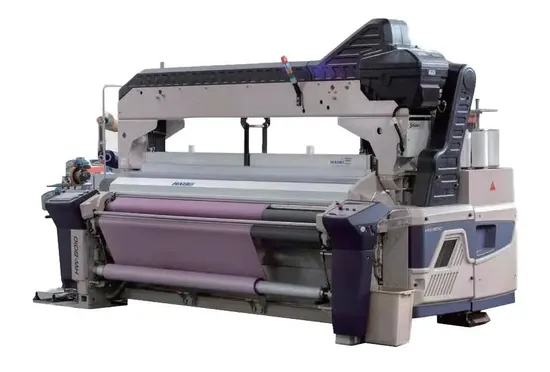

Haijia Quality High Speed Water Jet Weaving/Textile Power Loom with Electronic Control Crank/Cam/Dobby Shedding

Product Description

Founded in 1995, Haijia Machinery is a professional manufacturer of shuttleless looms in China integrating R&D, manufacturing, sales, international trade and services. The main products include "Haijia" brand HW series water jet looms , HA series air jet looms and cam shedding.
After the appraisal by China Textile Machinery Association, the technical level of water jet looms produced by Haijia Machinery has reached the international advanced level, and the market share has been leading the world for many years. .
The company adheres to the corporate mission of providing customers with competitive weaving solutions and services, and continues to create value for customers. With the responsibility of revitalizing national brands, it will surely become a world famous brand in the Chinese loom industry.
Product Overview
Machine Model
Water Jet Loom
HW3851; HW3873 ; HW861C; HW6008; HW6010; HW6012 ; HW8010
Air Jet Loom
HA-N ; HA-9010
Cam Shedding
C10 Maximum lift 12pcs Shaft;
C20 Maximum lift 10pcs Shaft;
C30 Maximum lift 10pcs shaft;
C21 special for blackout fabric,standard 14pcs shaft
Haijia Advantage

√ Premium Certified Supplier
Raw material quality control
Certificated supply of important components
√ Production management system
Processing workshop-Superfinishing the key parts.
Electrophoretic coating workshop-Anti-corrosion treatment of the machine
Assembly workshop - Shuttle-less loom pulsating production line
√ Package system
Haijia assembled the shedding and body before delivery, and then the loom can be adjusted and used directly after arriving at the customer site.
Separate Package. The shedding is separated from the body before shipment, and assembled after arriving at the customer's site.
√ After-sales service system
Haijia has a perfect after-sales service system. We has established a professional technical service team to provide comprehensive after-sales service and technical solutions for customers. Haijia will make a return visit to every customer to guide customers how to use and maintain the machine. For customers who have problems during use, we will conduct one-on-one phone calls or video guidance at first.
√ Quality control management system
Haijia implements strict traceable quality control over the entire production process from raw material selection, parts processing, spraying process to final assembly. Conduct pre-job operation training and post-job operation control for workshop workers to ensure that the operation conforms to the production process. In addition, Haijia adopts advanced calibration and testing equipment to ensure that the pass rate of each process is above 98%. Haijia provides customers with a one-year warranty. If there is any quality problem with the loom during the warranty period, Haijia will replace the parts for free.
√ Storage management system
Automatic stereoscopic warehouse-Warehousing of materials
Finished Products Warehouse-Loom storage Product Specifications

Item	Specification	Optional
reed width	Nominal reed width(cm):170,190,210,230,260,280,300,340,360,380cm
	Effective reed:(170~260cm) 0~60cm from 170 to 260cm Nominal reed width reduce 0~60cm 0~80cm(280cm)0~80cm width more than 280cm, Nominal reed width reduce 0~80cm
Weaving range	spun:Ne100~Ne2.5
	filament:22dtex~1350dtex
Weft selection	Two color, four color, six color and continuous expansion function
power	Positioning and stopping by electromagnetic brake control
	super start motor drive 2.2KW(crank shedding),3.0KW(cam shedding),3.7KW(dobby shedding ),6.5KW(acquard shedding)	Direct drive motor
	Two hand operation of control buttons
Weft insertion	Maximum weft insertion rate: 2300m/min
	Combination of main nozzle and auxiliary nozzle	Drafting nozzle
	Profiled reed
	Auxiliary main nozzle
shedding	Crank connecting rod shedding: 4 pcs heald frame or 6 pcs heald frame
	Positive cam shedding:Up to 10 pcs heald frame
	Dobby shedding: up to 16pcs heald frames
	jacquard shedding
let off	negative loose warp or Positive loose warp device
	electronic let off	double warp beam
	diameter of the beam flange:Φ800mm	Φ914mm Φ1000mm
take up	electronic take up
	Standard density 25-300 picks/inch
	Maximum roll cloth diameter: Φ 600mm (cam, dobby, jacquard shedding) Φ 520mm (crank shedding)
beating up	"U" shaped beating up shaft
	Four-link beating-up (narrow width), six-link beating-up (wide width)
	configure rocker shaft middle support
Length measurement and weft storage	Electronic weft feeder
weft stand	Floor type 4 barrels (2 nozzles), Floor type 8 barrels (4 nozzles), Floor type 10 barrels (6 nozzle)
Selvage	Planetary gear type Selvage device
Yarn end treatment	Discarded take-up 2pcs drum-type
Weft cutting	Mechanical weft cutting device	electronic weft cutting device
lubrication	Main transmission part oil bath type, manual centralized oil supply	Electric central oil supply
stop machine device	Weft yarn: photoelectric weft feeler, double probe
	Warp yarn: Electrical contact six-row dropper
	Others: selvage yarn, discarded edge yarn and automatic stop when the yarn is broken
	stop reason: show the information on the display, multi-function 4-color light stop display
automation	inverter to adjust speed.
	Memory card function

Workshop Display

CNC Workshop
The company is equipped with advanced CNC equipment, high-precision imported processing center, and adopts information management methods to achieve independent precision machining of precision parts of key parts of the loom.
The processing accuracy of key parts and components reaches 0.01mm, greatly improving the whole machine Stability and startup efficiency.
Spray Workshop
The spraying workshop adopts the fully-automatic coating production line and spraying robot independently developed by the company, and uses the same electrophoretic coating process as car that of automobile production to ensure that the inner and outer surfaces of complex workpieces are even and smooth, which greatly improves the corrosion resistance of the workpieces.
Environmentally friendly surface treatment, electrophoretic coating, topcoating process, and coating film drying process are all automated to improve the quality of the workpiece coating, have the same salt spray resistance as the car, and the appearance is more excellent.
Improve the corrosion resistance of the inner cavity of the workpiece, strong adhesion, long anti-rust time.
Assembly shop
The company adopts the whole machine assembly line, through strict quality management, finely differentiates the assembly process flow, uses special tools to fix the torque to fasten the connectors, and optimizes the quality control of the product through the technology of the entire assembly line.
Cost-effectiveness and quality have strict requirements, ensuring the quality of the whole organization.
Quality Control Workshop
The use of advanced inspection and testing equipment to ensure the pass rate of production products in each process, strictly control the quality fluctuations, so as to ensure the product quality of the whole machine.
Improve product production process through inspection, reduce quality cost and enhance product comprehensive competitiveness
Exhibition Show

Customer Representative

FAQ

About water jet loom
Question:What rotate speed can a water jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.
Question:What is the power consumption of a water jet loom?
Answer:The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.
Question:How much water does a water jet loom consume per day?
Answer:The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. Water jet loom with water circulation treatment system can achieve 100% water recycle.
Question:What kinds of fabric water jet looms can made?
Answer:Water jet looms are widely used in the field of chemical fiber,common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.
Question:What is the price?
Answer:Currently, we have developed 3 different series of water jet looms, with prices ranging from 9000 $to 30000 $. According to the fabric density of the user, we recommend the appropriate model to you.
About air jet loom
Question:What rotate speed can a air jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 9020 model is designed to rotate at a maximum speed of 1400 rpm, but it may vary slightly depending on the fabric type.
Question:What is the power consumption of a air jet loom?
Answer:The power consumption of air jet looms is related to the appropriate motor power, typically between 3.7kw and 4.5kw. The wider the loom, the greater the main motor power. Users can choose to install a motorized spindle, which saves 20% to 25% more power than ordinary asynchronous motors.
Question:How much air does a air jet loom consume per day?
Answer:Haijia air jet loom adopts Japanese original SMC air pipe, magnetic valve,pressure regulating valve and other accessories; Shorten the distance from the sub-nozzle to the reed, make the air supply more centralized, control the air pressure and air capacity separately to minimize energy consumption. The maximum air consumption of the machine does not exceed 1 cubic meter per minute, making it the best choice for energy conservation and consumption reduction.
About Haijia
Question:How long has your company been making machines?
Answer:Since its establishment in 1995, Haijia has been focusing on the R&D and manufacturing of water jet looms and air jet looms for 30 years, delivering 140,000 machines to 23 countries and regions worldwide, with a market share ranking first in the industry for ten consecutive years.
Question:How long is haijia machine's service life?
Answer:Haijia Looms are manufactured using the industry's top processing equipment and has the industry's most advanced electrophoretic spraying process. The machine's anti-corrosion and rust prevention capabilities have been greatly improved, and its service life is 2-3 times longer than that of other brands. Currently, the date of production of the operating machine on the market can be traced back to 2010.
Question:How long is the warranty of machine?
Answer:The industry standard warranty period is one year, and the warranty time of export machine will be appropriately extended for 2-3 months based on the voyage time.
Question:How is the after-sales service?
Answer:At present, Haijia has 30 after-sales service staff. We have set up five service centers in the world, including India, Pakistan, Vietnam, Turkey and Indonesia. You can choose the nearest service center for help. We can provide 24-hour service for any problem with the machine.
Question:Is there any discount?
Answer:The top three textile head enterprises in each country are using Haijia brand looms. In order to facilitate a better development of the market, we will provide the top two users of each new market with the maximum discounts. Looking forward to working with you.
