High Precision Slant Bed CNC Lathe E250L10 with Rigid Structure

Product Description

Product Description

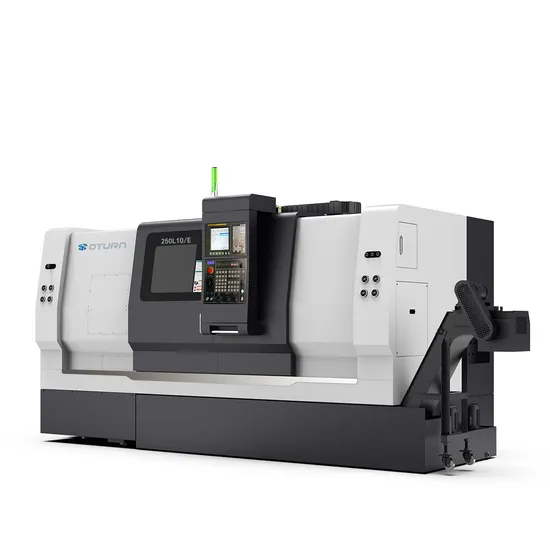

The machine adopts an optimized 30-degree inclined bed structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability. High-strength hard rail structure, the transmission system adopts screw pre-tension design to improve the rigidity performance.
The machine tool is equipped with hard rail guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to reduce the thermal displacement. to the lowest level, greatly improving processing accuracy. Product Parameters

Item	Unit	TY250L10/E
Max. upward rotation of bed surface	mm	Φ600
Max. processing diameter	mm	Φ570
Max. processing diameter on tool holder	mm	Φ350
Max. processing length	mm	930
Spindle nose	type	A2-8
Spindle Max. speed	rpm	3200
Cylinder/Chuck	lnch	10″
Spindle bore diameter	mm	Φ86
Bar diameter	mm	Φ76
Spindle motor power	kw	15/18.5
Motor torque 143-236 pulley ratio; 1:1.4	Nm	200-330
X/Z axis limit travel	mm	300/980
X/Z/Y axis guide rail specifications	/	Hard rail
X/Z axis motor torque	Nm	22
X/Z axis motor power	kw	3.0
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z axis rapid movement	m/min	20/20
Outside diameter tool holder specifications	mm	32X32
Inner diameter tool holder specifications	mm	Ф50
Adjacent tool change time	sec	0.2
Hydraulic tailstock	/	Hydraulic tailstock
Max. travel of tailstock	mm	720
Tailstock sleeve tapered hole	type	Mohs5#
Tailstock sleeve diameter	mm	Ф100
Sleeve stroke	mm	80
Machine size	mm	3900*2270*2150
Machine Weight	kg	6800
Cutting fluid tank volume	L	250
Hydraulic unit box volume	L	40
