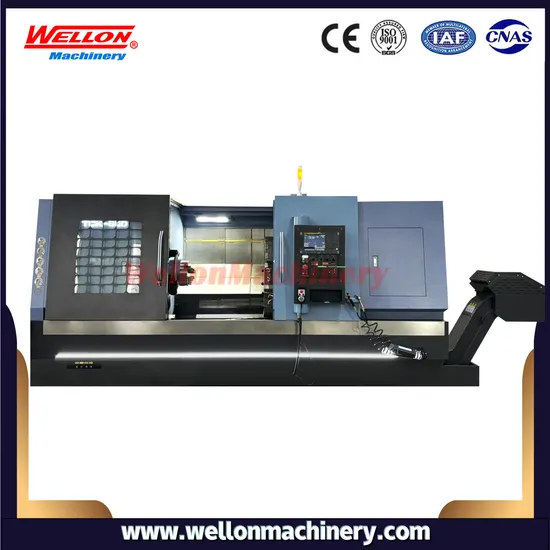

Heavy Duty CNC Slant Lathe Machine TCK800GP CNC Turning Machine

Product Description

Product Description

Heavy Duty CNC Slant Lathe Machine TCK800GP CNC Turning
Detailed Photos
Product Parameters
Features:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various
threads, circle arc,circular arc ,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve ,electricall appliance,instrument,automobile,motorcycle, bearings and so on.Higher accuracy Taiwan Linear guideways.High speed spindle unit.Higher rigidity cast iron.Integrated automatic lubrication30 degree One-piece casting slant bed.
Technical parameter:

Specifications	Unit	TCK800GP
Max.swing over bed	mm	830
Max. turning diameter	mm	620
Max.swing over cross slide	mm	460
Max. turning length	mm	900
Spindle nose	A2	A2-11
Chuck size	Inch	12''
Spindle motor power	kw	15/18.5
Max.spindle speed	rpm	1800
Spindle bore	mm	102
Max.bar dia. through spindle hole	mm	91
Bed slant angle	Degree	30°
X/Z axis leadscrew diameter	mm	40/50
X/Z axis linera guideway width	mm	45/45
X axis limit Travel	mm	330
Z axis limit Travel	mm	1230
X/Z axis motor torque	Nm	22/22
X/Z axis motor power	kw	3.0/3.0
Tailstock travel	mm	1085
Tailstock quill travel	mm	80
Tailstock quill diameter	mm	100
Tailstock taper	Morse	MT5
Machine weight	kg	8600

Standard accessories:
Fanuc 0i TF controller
Main motor and Drive servo motors from Fanuc
Hollow hydraulic chuck from Taiwan
Hydraulic tail stock
Hydraulic turret 12 stations from Taiwan
X,Z axis Linear roller type guide way Taiwan
Ball leadscrew Taiwan
Bearings from Japan
MPG
Chain type chip conveyor
Cutting Cooling system
Work lamp
Air gun
Central auto-lubricating system
Tri-color warning lamp
Heat exchanger in cabinet
Full closed guard
Leveling bolts and blocks
Tools and tool box
Optional accessories:
BMT65 power turret 12 positions
C-axis
Y axis travel ±45mm
Axial power head
Radial power head
Tool probe renishaw
Air conditioner in cabinet
Bar feeder, servo motor type
Automatic part catcher price
Hydraulic steady rest
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
