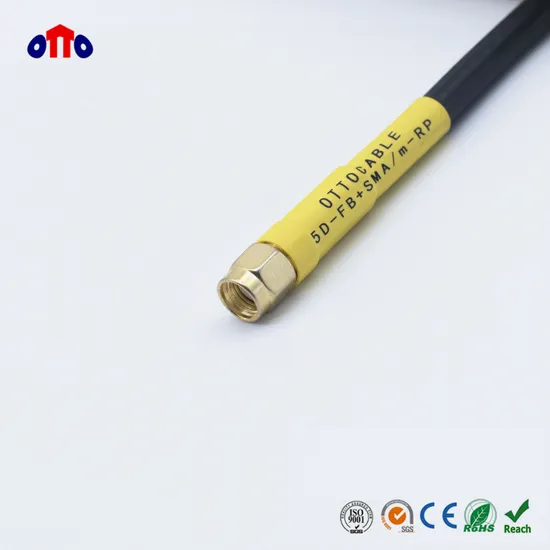

Pre-Made Coaxial Cable 5D-FB Cable Assembly with SMA Plug for Antennas
| US$0.20-0.80 | 5,000 Meters (MOQ) |
Basic Info.
Model NO.
5D-FB
Type
Coaxial
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
BC/CCA
Certification
CE, ISO, RoHS
Model
5D-FB
Brand
Otto Cable
Transport Package
Pallet; Carton; Spool
Specification
7.5mm
Trademark
OTTO CABLE
Origin
Zhejiang, China
HS Code
854420
Production Capacity
150km/Day
Product Description
Pre-Made Coaxial Cable 5D-FB Cable Assembly with SMA Plug for Antennas
Application:
• Antennas
• Base Station Atenna
• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Equivalent to LMR300 cable
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric First Shield Second Shield Jacket | Bare Copper / Copper Clad Aluminum Foam PE Bonded Aluminum Foil Tinned Copper / Al-Mg Wire Braid PVC/PE/LSZH | 1.80 5.00 5.10 5.60 7.50 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) VSWR Installation Temp(ºC) Operating Temp(ºC) Bending radius(mm) | 50±3 82 82.0 ≥20 ≥75 ≤1.2 -25 to +70 -25 to +70 27.0 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 800 1200 1500 1800 2000 2500 3000 | 19.0 24.0 27.2 29.7 32.5 35.8 40.9 |
