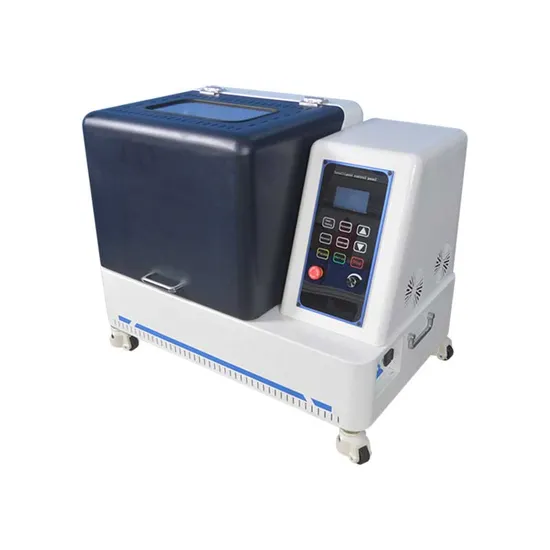

High Energy Planetary Ball Mill for Various Material Milling

Product Description

High Energy Planetary Ball Mill for various material milling
Introduction of compact tube roller:
CY-MSK-SFM-15 is a new generation planetary ball mill with independent speed for disc revolution and jar rotation, which can adjust impact and shear force during milling for various material to produce the optimized particle size and shape and achieve better mechanical alloying.
Specifications of compact tube roller:

Features	Independent speed control for main disc revolution (0 - 400 RPM) and milling jar rotation (0-1600 RPM) to allow the user to explore the best parameter for the wanted particle size and shape. Touch screen control panel for programming the speeds, the milling time and the pause time. Four 500 mL stainless steel jars are included for immediate use. Other type jars are available as an option. Note: Particle size is dependent on impact force and particle shape is dependent on shear force. It is your responsibility to find the best parameter for various materials.
Working Voltage	208 - 240V AC (single-phase), 50/60 Hz 4550W Max. 220V AC Power plug is not included. For operation under 110V, please use > 1000W transformer.
Milling Speed	Main disc revolution: 0 - 400 RPM adjustable Milling jar self-rotation: 0 - 1600 RPM adjustable
Touch Screen Control	Digital display and inputs for speed and time Up to 10 recipes can be stored Max. 5 segments speed control per recipe, up to 10 Cycles Rotation direction selectable, clockwise-anticlockwise
Material Feed Size	Crispy materials< 10mm (Others<3mm)
Material Size for Input & Output	Input material size: < 3 mm Dia. for most materials and ~< 10 mm Dia. for brittle materials Output particle: Wet Milling < 1um average Dry milling < 20um average Note: The output granularity is dependent on the material physical properties such as size, milling media and processing time. Minimum granularity can be as small as 0.1 um according to customer's feedback.
Grinding Container	Made of SS 304 Steel with 5 Liter Capacity and vacuum jacket for thermal insulation. Dimension: I.D.: 210mm Height: 180mm Vacuum jacket with KF 25 port and needle valve (vacuum pump is not included, please order it at CYKY)
Milling Jars	Four sets of 500 ml jars with SS milling ball combo are included. If extra SS balls are needed please click the pic in below to order. We provide a wide range of jar/ball materials for contamination-free processes, such as Nylon, Alumina, Zirconia, agate...Please contact us for more details. Hi-throughput milling tank (8 x10ml jars) is available upon request, which can mill 32 samples per batch.
Noise Level	55~70 decibel
Holding Fixtures	Four sets of holding fixtures are included Easy to tight for max. jar securing. Can hold jars with height up to 80mm
Warranty	One-year limited warranty with lifetime support Consumable parts, such as milling jar and grinding balls are not covered by the warranty
Product Dimensions & Weight	530mmW×670mmL×1300mmH (close cover) 530mmW×670mmL×1620mmH (open cover) ~245kg

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use ****** Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service.
