Fully Automated Four Station Station Plastic Tray Biscuit Container Fruit Tray Seed Tray Thermoforming Machine

Product Description

Product Parameters

Technical Parameters
Station	Four stations	Three station	Four stations	Three station
Model	TTF-700AF	TTF-700A	TTF-520AF	TTF-520A
Forming Area	700mm x 550 mm		520mm x 400 mm
Forming Depth (Max.)	120mm		110mm
Sheet thickness	0.2-2.0mm
Forming Speed (Max.)	35times/min		30times/min
Air pressure	0.6-0.8mpa
Air consumption	3.6 m³/min		3.0 m³/min
Water consumption	0.8 m³/h		0.7 m³/h
Sheet width (Max.)	730mm		550mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Used power	105Kw	95Kw	55Kw	50Kw
Rated power	210Kw	190kw	110Kw	100Kw
Heating power	118Kw		75Kw
Procedure	Forming-punching-cutting-stacking	Forming-cutting-stacking	Forming-punching-cutting-stacking	Forming-cutting-stacking
Dimension	L14000*W4700*H2750mm	L13000*W4700*H2750mm	L11000*W4600*H2700mm	L9700*W4600*H2700mm
Weight	About 25.0T	About 19.0T	About 11.0T	About 9.0T

Main Electrical Components
MODEL/PARTS	TTF520A/AF	TTF700A/AF
Filter	CKD(Japan)
Forming Valve	NORGER(UK)
Touch Screen	DELTA	KUNLUN TONGTAI
Proximity Switch	ROCKWELL(USA)
Temperature Control Module	WEST(UK)
AC Contactor/Circuit Breaker/Button	SCHNEIDER(France)
Intermediate Relay	IDEC(Japan)
Intermediate Relay Base	OMRON(Japan)
PLC/Servo Motor	DELTA(Taiwan)
Safety Door	-	Panasonic(Japan)
Sheet Sagging Detection	-	Sick(Germany)

Product Display

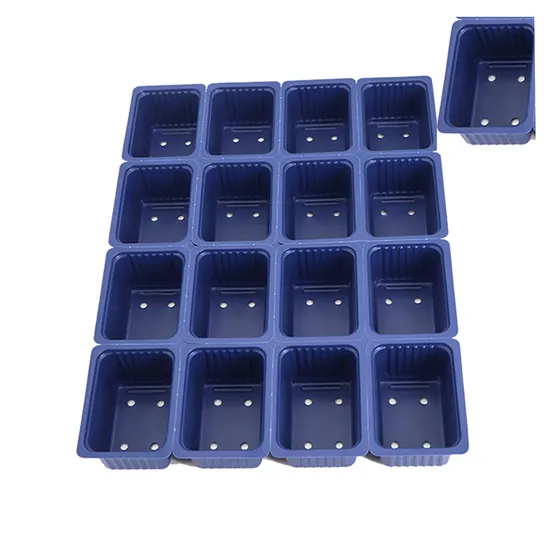

Application: TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, punching, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality. Main Function
1.positive and negative pressure forming device. 2.vacuum forming device.
3.touch screen computer temperature module point to point control function.
4.air control device.
5.cooling device.
6.die, mold temperature control function.
7.automatic punching and cutting function.
8.automatic stack counting function.
9.edge automatic rewinding function.
10.safety protection device.
SUMMARY OF MACHINE1.Every station is driven by the eccentric crank linkage structure.
2.Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3.The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4.The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1ºC.
5.There is a rapid mould change device, which shortens the time for mould change extremely.
6.Each servo motor has overload protection for machine's overworking.
7.Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
8.There is an alarm function of the sliding doors.
What is features and advantages of our plastic thermoforming machine?1. Fully servo driven machine.no noise.no vibration,thermoforming good and fast.
2. Fully machine in compact structure,taking small floor space.
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device, can be turned down at any time during production without breaking the sheet reaching without
wasting materials.
5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a
regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the
oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable
in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping
state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting, auto counting,auto transmission by PLC.
8. Labor saving, only 1-2 workers packing.
