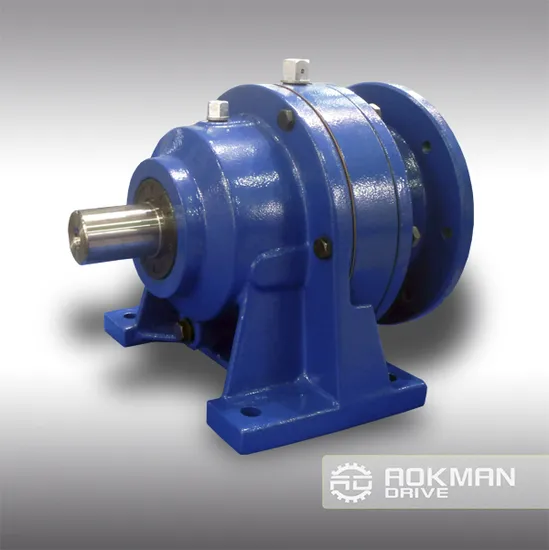

Aokman Drive Cycloidal Pin Gear Speed Reducer

Product Description

Product Description Aokman Drive cycloidal pin gear speed reducer
Components:
1. Housing: Cast Iron
2. Gearset: Cycloid Wheel & Pin Wheel
3. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)
IEC-normalized Motor Flange
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output

Detailed Photos Features:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations
2. High efficiency, the average efficiency is over 90%
3. Compact structure, light weight
4. Stable and reliable operation, low noise5. Long service life
Product Parameters
Parameters:

Models	Power	Ratio	Max. Torque	Output Shaft Dia.	Input Shaft Dia.
1 Stage
X2(B0/B12)	0.37~1.5	9~87	150	Φ25(Φ30)	Φ15
X3(B1/B15)	0.55~2.2	9~87	250	Φ35	Φ18
X4(B2/B18)	0.75~4.0	9~87	500	Φ45	Φ22
X5(B3/B22)	1.5~7.5	9~87	1,000	Φ55	Φ30
X6(B4/B27)	2.2~11	9~87	2,000	Φ65(Φ70)	Φ35
X7	3.0~11	9~87	2,700	Φ80	Φ40
X8(B5/B33)	5.5~18.5	9~87	4,500	Φ90	Φ45
X9(B6/B39)	7.5~30	9~87	7,100	Φ100	Φ50

X10(B7/B45)	15~45	9~87	12,000	Φ110	Φ55
X11(B8/B55)	18.5~55	9~87	20,000	Φ130	Φ70
2 Stage
X32(B10)	0.25~0.55	121~1849	-	Φ35	Φ15
X42(B20/B1812)	0.37~0.75	121~1849	-	Φ45	Φ15
X53(B31/B2215)	0.55~1.5	121~1849	-	Φ55	Φ18
X63(B41/B2715)	0.75~2.2	121~1849	-	Φ65(Φ70)	Φ18
X64(B42/B2718)	0.75~2.2	121~1849	-	Φ65(Φ70)	Φ22
X74	1.1~3.0	121~1849	-	Φ80	Φ22
X84(B52/B3318)	1.5~4.0	121~1849	-	Φ90	Φ22
X85(B53/B3322)	2.2~5.5	121~1849	-	Φ90	Φ30
X95(B63/B3922)	3.0~7.5	121~1849	-	Φ100	Φ30
X106(B74/B4527)	4.0~11	121~1849	-	Φ110	Φ35
X117(B84/B5527)	4.0~15	121~1849	-	Φ130	Φ40(Φ35)

1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
Installation:
Foot Mounted
Flange Mounted
Lubrication:

-	Foot-mounted		Flange-mounted
1 Stage	X2~X4	X5~X11	X2~X4	X5~X11
	Grease Lubrication	Oil-bath & Splash Lubrication	Grease Lubrication	Oil Pump Circulation Lubrication
2 Stage	X32~X42	X53~X117	X32~X42	X53~X117
	Grease Lubrication	Oil-bath & Splash Lubrication	Grease Lubrication	Oil Pump Circulation Lubrication

Cooling:
Natural Cooling
Packaging & Shipping
Company Profile
Our Advantages
FAQ 1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
Welcome to contact us for more detail information and inquiry.
If you have specific parameters and requirement for our gearbox, customization is available.
