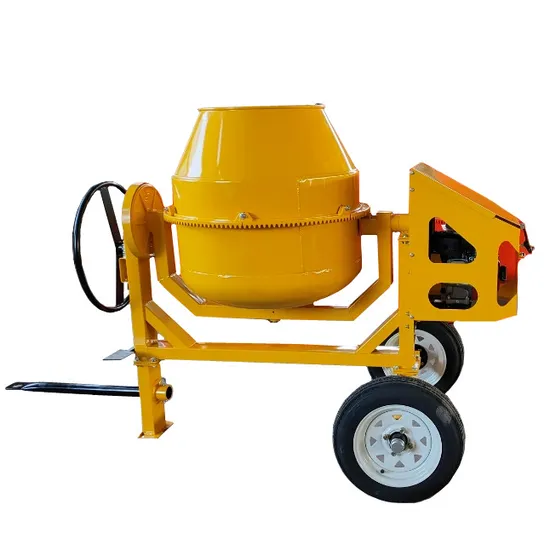

500L Diesel Engine Portable Mortar Concrete Mixer Plant Sale

Product Description

Company Profile500L Diesel Engine Portable Mortar Concrete Mixer Plant Sale
Laizhou CHICCA Machinery CO.,LTD is located in Chengguo Town, Laizhou City, Shandong Province of PRC, Founded in 2005, it covers 10300 square meter. Our company is a professional manufactory which devote to designing, researching,developing,manufacturing and exporting many different kinds of portable concrete mixer and plate compactor and block making machine. Concrete mixer main productsrange from 260 liter to 800 liter concrete mixer, which power motor can be equipped with diesel engine, gasoline engine and electrical motor.Our company adhere to "professional, Honest, Trustworthy, Good Quality" business philosophy, supply first class quality'sproducts and service to our customers. Due to rich experience in production, professional, continuous improvement and innovation, honesty and top quality, we have gained a good reputation from our customers. Now our concrete mixer has been sold to more than 20 countries. Our service principle: customer-oriented, the most reasonable price, the most prefer service, the best quality products. Since 2005, we are untiring pursuit of development and growth. We will continue to develop the new products, enhance the quality of product. Now we also can supply some light weight construction machinery. Such as plate compactor, paving block cutter, brick making machine and so on. At the same time, we are very glad to help our clients to procure other products from China.
Engine Details

Engine type				Brand we use		Power		RPM of engine		Capacity used to
Electric engine						1.5kw-5kw		1800		260L-800L
Gasoline engine				Lifan,Loncin		3HP-9HP		1800		260L-800L
air-cooled diesel engine				lifan,Kipor		3.5HP-9HP		1800		260L-800L
Water -cooled diesel engine				Jiangdong etc.		8HP		1800		260L-800L

Product DescriptionBrief Introduce:
The cement concrete mixer is used for mixing dry-hard ,semi-hard,plastic and various proportions of the concrete ,and can meet different requirements of the construction projects.
Concrete Mixer has three models differed by driven style:Gasoline/Diesel/Moter .
It is suitable for mixing mortar,concrete,with merits of small volume,easy for transport,high-eficiency and outstanding quality.
Features of Mini Concrete Mixer
1.All-steel construction, Mini Concrete Mixer has long life span.
2.Large wheels, It's easy to move the Mini Concrete Mixer to anywhere.
3.Diesel/gasoline/electric motor,optional as customers' requirement. Mini Concrete Mixer is powerful.
4. Cast iron gear for Mini Concrete Mixer steady and silent working.
5.Spray painted surface,colour as your request.
6.EPA certificated wheels,wheels size:520mm.
7.Guarantee time:six months warranty
8.water supply mode:direct input
9.Discharging:semi-automatic

Model No.		FA260L	FA300L	FA350L	FA400L	FA450L
Concrete Mixer	Drum Capacity	260L	300L	350L	400L	450L
	Drum Mouth	450mm	450mm	516mm	516mm	516mm
	Drum Max.Dia.	700mm	700mm	800mm	800mm	800mm
	Drum Height	687mm	777mm	766mm	851mm	936mm
	RPM of Drum	18-25 rpm
	Lower Drum Thickness	4mm
	Upper Drum Thickness	3mm
	Productivity	1.5-2.5m³/h	2-3m³/h	2.5-3.5m³/h	3-4m³/h	3.5-4.5m³/h
	Dimension	2645x1090x1336	2645x1090x1429	2800x1120x1436	2800x1120x1481	2800x1120x1549
Engine	Diesel engine	6HP
	Gasoline engine	5.5HP		6.5HP
	Electric motor	1.5KW		2.2KW
	Starting System	Recoil / Electric
Unit Package	Net Weight	230kg	250kg	260kg	270kg	280kg
	Gross Weight	270kg	290kg	300kg	310kg	320kg
	Package Size	1835x810x1010	1835x810x1090	2030x910x1100	2030x910x1175	2030x910x1255
Container Loading	20GP	22	22	20	20	20
	40HQ	52	52	52	44	44

Detailed Photos
Packaging & ShippingPacking detail:
1.Standard export packing or according to customer`s requirements
2.use crane/forklist to load the machines into the container
3.use the wire to fasten the machines in order to keep them stable
4.use the cork wood forbid collision
Delivery detail:Delivery Detail:Swift delivery,within 15-30 days after receiving the depositMore Product
FAQQ1. What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. For small quantity order, we suggest 100% payment for one time. Q2. What is your terms of delivery?A: FOB, CFR, CIF.Q3. How about your delivery time?A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q4. Are you trading company or factory?A: We have our factory, so we accept OEM service. But can not produce all the parts, so, we trade some parts too, that will be easier to help customer find the fit parts. Q5. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q6. How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. 3. We welcome customers to be our agency of "Njuone" brand. We have our own logistic and express system and delivery cost is very competitive and efficiency.
