CNC Vertical Lathe Turning Milling Drilling Complex for Metal Parts Processing

Product Description

CNC SINGLE COLUMN VERTICAL TURNING LATHE

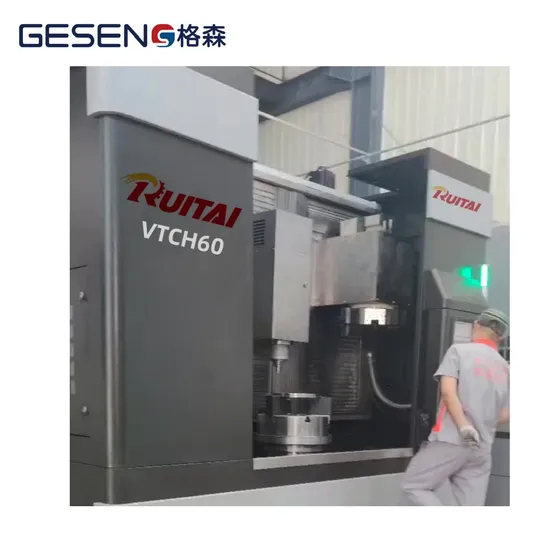

VTCH600 Turning-milling composite lathe
CNC turning and milling composite lathe VTCH600 combines the characteristics of CNC lathe and CNC milling machine to achieve the integrated processing and enhance machining flexibility with multi-axis control function, which greatly increases the machining flexibility to meet the machining requirements of complex workpieces, such as inclined surfaces, curved surfaces, etc.
ATC TOOL MAGAZINE 12-POSITIONS
WIDE APPLICATIONS: cutting turning milling drilling tapping



PARAMETERS

No.	Items	Unit	VTCH600
1	Travel of X axis	mm	450
2	Travel of Z axis	mm	600
3	Max. Swing diameter	mm	700
4	Max. working diameter	mm	600
5	Max. working height	mm	600
6	Speed of spindle	rpm	50~1000
7	Motor power of spindle	kw	40
8	End face form of spindle		Straight end face
9	Torque force (Rated torque )	Nm	390
10	Chuck		500
11	Speed of auxiliary spindle		50-6000
12	Taper of auxiliary spindle		BT40
13	Servo motor power of spindle	kw	7.5
14	Distance between spindle nose and workbench	mm	100-700
15	ATC tool magazine (Taiwan brand)		12 positions with cooling
16	Center height	mm	125
17	Square of blade		32/dia.50 Inner bore cutter
18	Qty of tools	pcs	16
19	X-axis rolling linear guide rail	mm	2*53mm wide
20	Z-axis rolling linear guide rail	mm	4*45mm wide
21	Precision of ball screw		C3
22	Lead Screw Size (X Y Z)		dia.50
23	Guide rail	mm	10
24	Rapid feed rate of X and Z axis	m/min	15
25	Coolant motor	w	120
26	Pump flow	L	30
27	Tank volume	L	150
28	Positioning accuracy	mm	±0.001
29	Repeated positioning accuracy	mm	±0.005
30	Min. positioning unit	mm	0.001
31	Positioning accuracy of spindle index		±30″
32	Repeated positioning accuracy of spindle index		±15″
33	Power source		3¢-AC 380V 50Hz±5%
34	Power consumption		40kw
35	Conditions for long-term stable operation		5~38°; Humidity <85%
36	Net weight	kg	9500
37	Dimension	mm	3200*2500*3200
38	The hydraulic pressure stands		750W/50Hz-40L
39	Electric leakage protection and power failure protection
40	Comply with national standard of noise

CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color

CK5123 economic model Cost-effective design without cover and conveyor to save shipping cost. CNC or manual lathe optional. Square ram vertical tool rest. CNC system optional.

CK5117CM turning and grinding model Additional grinding head tool rest. To improve working efficiency. Customization service to meet working demands.

CK5116BD higher precision model Two leading screws with two lifting motors. To improve working precision and stability. Four position turret as standard. Two rams optional.

Worktable rotary speed range 5-160r/min 4grade stepless speed change

Turret fast moving speed 2000mm/min Vertical turret max. cutting force 25Kn

HT300 worktable QT500 spindle Precision gear hobbing

Kindly contact us to get your vertical lathe machine tool.
