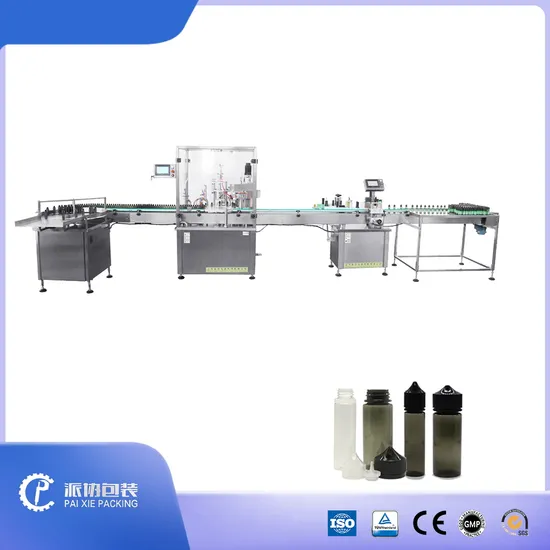

Automatic E-Liquid Line Cigarette Oil Essencial Liquid Filling Machine

Product Description

Product Description
The latest small bottle filling line is rated at 30-80 fillings per minute, depending on filling volume. Use online filling 10-180ml containers. The machine is servo driven, which helps to maintain accuracy and speed, you only need to enter the ideal filling volume and speed in the HMI interface, this is the significance of the servo motor. At the top of the machine, we use the mixing hopper, which makes the equipment suitable for liquids and pastes. The mixing motor drives the mixing paddle, which makes the filling materials have a strong fluidity. It can fill different bottles, we set a scale in the adjustment part, used to record the position relationship of different specification s of bottles to the equipment. This greatly enhances the convenience of the device.
Process: bottle unscrambler / bottle feeding table - bottle filling and capping - labeling - cartoninging - collecting table (Customized)1) HMI control, easy operation, PLC control, accurate measurement.2) Frequency conversion control, speed can adjust arbitrary, automatically count.3) Automatic stop function, no bottle no filling.4) High-precision filling driven by servo motor, precise positioning.5) Machine adopt SS304 and SS316L, comply to GMP requirement.

Product Parameters

Model	PX-BFC80
Yield(pcs/min)	30-80BPM (customized)
Filling heads	2(customized)
Filling pump	Peristaltic pump or Piston Pump
Work voltage	110/220/380V 50/60HZ(customized)
Air presstion	0.6MPA
Accuracy	±1%
Power	1.3KW
Driving	Servo motor
Direction	5-180ml(customized)
Pump volume	2-200ml(customized)
United size	1200*900*2200mm(customized)
Hot filling	Normal temperature filling
Weight	550kg(customized)
Material	SS304+SS316
HMI	7.5" Color Touch Screen Control
Protection	Comprehensive Safety Alarm System
Speed controller	Variable Speed Controls
Detecting system	Vial Detector & Counter

Filling Nozzle 1. Stainless steel 316L
2.Spring loaded ball check valve
3. With re-enforce siliconhoses (food Grade) for product transfer
4.Custom attachment system for BottlingLife equipment
5.Final design adapted to the product to be fill (To Be Confirm)
Capping Station
Transfer star wheel forCappingstation
1.Tube Alignment with ''Funnel'' Device to properly introduce the pipette into the bottle
2.Final independent Motortorque control
3.Torque accuracy 0.2 Nm (± 2 in.-lb.) across a range of 0.56 to 22.4 Nm (5 - 100 in.-lb.)
4. Magnet Torque adjustable tighten the cap to prevent any damage to the caps
We'll change into your standard plug before shipping,such as American plug, UK plug, European plug...
Complimentary installation kit
Complimentary installation kit WHY people like PAIXIE ?
You may be warrying those ?
1- How can i fill so many formats my bottles with the machine perfectly withour complex adjusment ?
2- How can i understand your quality ?I do not want any kinds bad machine which failed to live up to my investment .
3- How can i know your machine life ? It looks always beautiful but only in your room .
4- How can i install such a big long machine by myself ? It looks never eaasy at all .
5- How can i recognize the real difference in chinese market ? So many suppliers quoted me every day !!!
6- What can i do if machines get broken in broken ? Who is gona to help me ?
To look how PAIXIE boys do
Compared with tradtional machinery , PAIXIE smart filler has below characters which are benefited to each customer operation experience :
1- With servo driving , operator just edit the filling parameter on HMI to realize all kinds products packing .
2- 150mm width SS304 protection frame which equied with induction switch is able to stop machine whenever operator open the plexiglass door which is good for human protection .
3- PAIXIE'S machines are all equiped with scale rules for diffeferent kinds bottle replacing , which is convenient for date recording and save the time in adjusting .
4- All PAIXIE'S machine are made of SS304+SS316 which avoiding pollution perfectly, protect custoomer's product quality .
5- Machines are deliveried as whole which solving the stress of after sell installation for customer. PAIXIE'S technicians are standing by all time for on-site service .
