US$325.00-521.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Vertical Shaft
Belonging
Agriculture Machine
Transport Package
Wooden Package
Production Capacity
500sets/Year
Product Description
Product Description

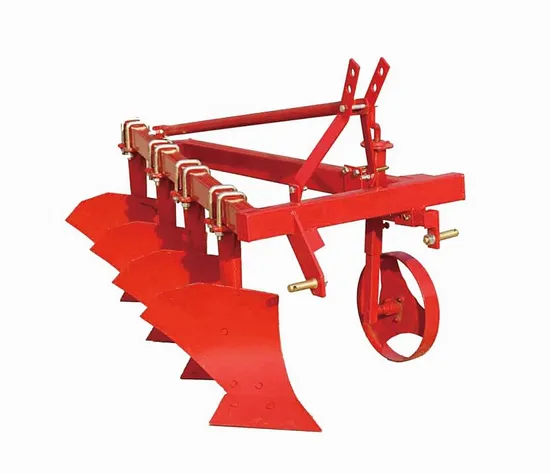

Our main products include DISC HARROW,DISC PLOUGH,CULTIVATOR,SHARE PLOW.FARMTRAILER,GRASS MOWER,SEEDER,HARVESTER,DISS BLADE,BREAK SHOVEL AND OTHER AGROPARTS,ESPECIALLY IN HEAT TREATMENT OF THE BLADE.WE HAVE ACCUMULATED RICHEXPERIENCE,THE PRODUCTION OF BLADE WITH EXCELLENT TECHNOLOGY AND RELIABLEQUAL-ITY HAS WON THE CUSTOMER'S WIDELY RECOGNIZED. The plough is a fully suspended plough, which is composed of a thick blade at the end of a beam, usually tied to a group of livestock or motor vehicles that pull it, and also driven by human power.
It is used to break up soil blocks and make grooves for sowing.
Feature:
restoring the structure of the soil plough layer improving the capacity of soil water storage and moisture preservation eliminating some weeds reducing pests and diseases improving the operation standard of agricultural mechanization.
If there is any needs or questions, feel free to contact me via email or phone.
Detailed Photos
Product Parameters
| Mode | 1L-220 | 1L-320 | 1L-420 | 1L-520 | 1L-225 | 1L-325 | 1L-425 | 1L-525 |
| Width of cut (mm) | 400 | 600 | 800 | 1000 | 500 | 750 | 1000 | 1250 |
| Depth of cut (mm) | 200~250 |
| Farrow | 2 | 3 | 4 | 5 | 2 | 3 | 4 | 5 |
| Weight (kg) | 64 | 100 | 130 | 170 | 125 | 170 | 240 | 270 |
| Tractor power(hp) | 15~25 | 25~35 | 35~45 | 50~60 | 25 | 40 | 50 | 65 |
| Mounted cat | Three point mounted |
| Mode | 1L-330 | 1L-430 | 1L-530 | 1L-335 | 1L-435 | 1L-535 |
| Width of cut (mm) | 900 | 1200 | 1500 | 1050 | 1400 | 1750 |
| Depth of cut (mm) | 220-270 |
| Farrow | 3 | 4 | 5 | 3 | 4 | 5 |
| Weight (kg) | 230 | 330 | 420 | 300 | 470 | 520 |
| Tractor power (hp) | 50 | 70 | 80 | 55 | 75 | 90 |
| Mounted Cat | Three point mounted |
