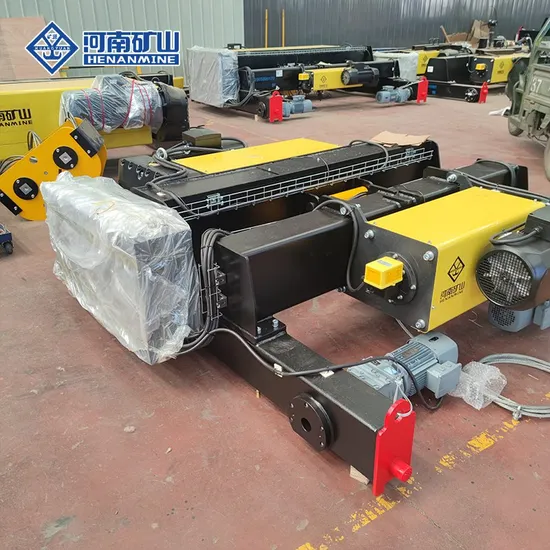

European Design Wire Rope Hoist

Product Description

Main Product Series:
Established in China in 2002, Henan Mine Group is a multi-national specialist designer, manufacturer & supplier of:
* Overhead Bridge Cranes
* Gantry Crane
* Ladle Foundry Crane
* Rail Mounted Gantry Crane (RMG)
* Slewing jib cranes
* Electric wire rope hoists
* Electric winch
* Euro hoist
* Lifting platform
* Crane component sets
* Material handling equipment
Product description: European design Wire rope Hoist for Single girder with Frequency-controlled configuration
European design hoist from Henan Mine Crane is a new type wire rope hoist.It employs motor of hoisting mechanism and reducer imported from Germany.The integrated and compact design of hoisting motor,reducer,reel and limit switch saves space for the users.Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.
It has more and faster hoist speed and various pulley ratio which can be selected. The standard traveling mechanism of trolley is controlled by converter,with speed of 20m/min,which makes a little swing and accurate position if hoisting items while trolley traveling as well as lifts precision and valuable items reliably.
The hoisting mechanism of European design hoist for single girder crane strictly carries out the relevant standards of FEM with aluminum alloy shell of reducer,steady running and low noise features,lift time lubricating(within safety service circle),and double-disk electromagnetic brake.
Configuration of protection:
1.Anti-collision device:
If several cranes travel on the same rails,the common resolutions refer to install contact anti-collision device so as to avoid sharp impact due to incorrect operation.Non-contact infrared sensor anti-collision device will be additionally installed to take double safety protection measure-sound and light alarm if running busily or under an important working environment.
2.Overload protection device:
If work with over load,it has safety devices with protection function including auto-stop lifting capacity limiter and weight display.
3.Electric protection:
It has complete equipments including main isolation switch,emergency disconnect switch,protection for short circuit,pressure loss,zero position,excitation loss,over current and over speed,which sufficiently implements conception of safety first. Safety features: Wireless anti-collision limiter: with infrared sensor limiter,it is sensible and reliable; Braking security protection: electric brake and mechanical brake; The traveling mechanism of crane and trolley has polyurethane buffer which relieves impact by absorbing motion energy and is easy to install and maintain,meanwhile,under important working condition,the hydraulic buffer also be selected to achieve the better performance; Anti-collision sweep-rail plate,end stop blocks;install sweep-rail plate before the wheels of crane and trolley in order to remove foreign bodies on the rail and ensure the safety of traveling;Install end stop blocks at the traveling limit of crane and trolley,which is considered as force stopping methods if electric limit does not work in order that avoid derailing of crane. Product specification:

lifting capacity/t	lifting height/m	lifting speed(m/min)	traveling speed(m/min)	working class/FEM	working class/ISO
1	6/9/12/18	0.8/5	5~20	4M	M3~M7
1.25	6/9/12/18	0.8/5	5~20	3M
1.6	6/9/12/18	0.8/5 ; 1.6/10	5~20	2~3M
2	6/9/12/18	0.8/5 ; 1.3/8	5~20	2~3M
2.5	6/9/12/18	1/6.3 ; 1.3/8	5~20	2~3M
3.2	6/9/12/18	0.8/5 ; 1/6.3 ; 1.6/10	5~20	2M/1AM
5	6/9/12/18	0.8/5 ; 1/6.3	5~20	2~3M
6.3	6/9/12/18	0.8/5 ; 1.3/8	5~20	1AM/4M
8	6/9/12/18	0.8/5	5~20	3M
10	6/9/12/18	1/6.3 ; 0.8/5 ; 0.66/4	5~20	1AM~3M
12.5	6/9/12/18	0.8/5 ; 0.6/4 ; 1/6.3	5~20	1AM/2M
16	6/9/12/18	0.6/4	5~20	2M
20	6/9/12/18	0.6/4	5~20	1AM

Photos for reference:

Company Profile:
FAQ & Contact Us:
1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams.
You are also warmly welcomed to our factory to make the inspections.
Meanwhile, also support live factory view & crane inspection.
2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is famous international brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
