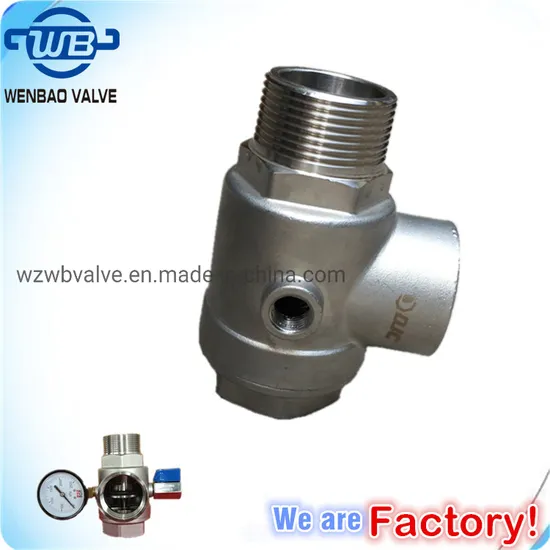

One Way Stainless Steel 304 and 316 5 Way Check Valve Five Way Non Return Valve

Product Description

Low Pressure Female Threaded Stainless Steel 5Way Check Valve
Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 1.6MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
CASTING BODY
200PSI(PN16)W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials

1	Cap	CF8/CF8M	4	Stem	304/316
2	Gasket	PTFE	5	Spring	304/316
3	Body	CF8/CF8M

Main Dimensions

NPS	RC	D	H
1"	1"	68.6	96
11/4"	11/4"	69	109
11/2"	11/2"	71	122
