Manufacturer Factory Direct Automatic CNC Control System Accurately Position Sheet Metal Press Brake Machine

Product Description

Product Description

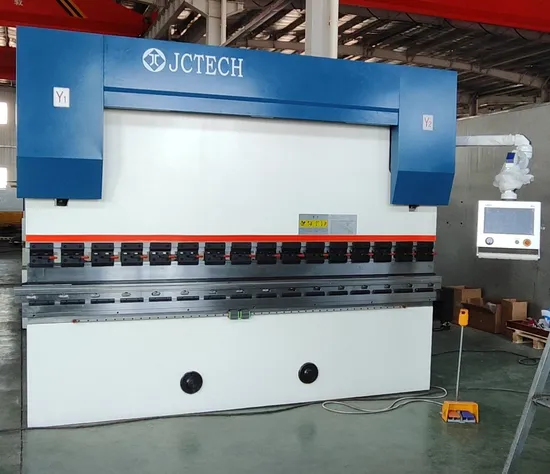

Electronic hydraulic CNC Press brake bending machine
with hydraulic servo
Electronic hydraulic pressure
With the bottom mold, to achieve different angles of bending, equal pressure operation.
Higher accuracy
The rear transmission using ball screw guide rail.
Customizable press brake machine width and pressure.

Model	JC15	JC25	JC32	JC41	JC51	JC61
Process Length	<1500mm	<2500mm	<3200mm	<4100mm	<5100mm	<6100mm
Pressure	400kN	800kN	1100kN /1700kN /2500kN	1100kN/ 1700kN /2500kN /3200kN	1600kN/ 3200kN	2500kN/ 3200kN
Control System	Germany MT15 CNC Control system, multi-step programmi
Precision	Electro-hydraulic servo calibrate
Positional	Y1-Y2-X-R-V 4+1 axis accurate positioning.
Frame	Machine frame integral welding
Features	Flattening, bending at any Angle, arc at any Angle, (need to match the bottom mold)
OEM/ ODM	Customized for your needs

Company Profile
Jingchuang(Tianjin) Laser Technology Co., Ltd
We were founded in 2015, covering an area of more than 50,000 square meters, with two factories and four production workshops, mainly manufacturing: fiber laser cutting machines for pipes, laser cutting machines for plates, laser welding machines, laser marking machines, CNC bending machines, grooving machines, and other matching machinery and equipment.
We support OEM/ODM, support custom production machinery according to your industry, budget, needs, etc., to provide you with the most cost-effective laser equipment, and continue to provide you with technical support, training and after-sales service, so that you can use our products more perfectly.Certifications
As a manufacturing plant with a number of technical patents on laser cutting machines and CNC bending machines, our equipment has passed the European 2006/42/EC standard, meets the quality standards EN60204 and ISO12100, and is a demonstration enterprise. Therefore, we deserve your trust and cooperation.
After Sales Service
1. Machine has been tested and adjusted before delivery, you can use the machine directly after receiving it.
2. We provide free user manuals for our laser machines, including text and video.
3. Technicians are always on standby, you can contact us if you have any questions about our machine.
4.We can make door-to-door service, but you have to pay some fees for this.
5.Non-human damage, non-expendable parts, quality problems, we provide solutions.
Exhibition
We have participated in a variety of laser mechanical equipment related exhibitions, so that more friends can understand our equipment on the ground. You can contact us and we will share with you the latest exhibition information, so that you can check our lase machine in the field.
