Good Quality Pneumatic Hydraulic Clinching Tool for Sheet Metal Joining

Good Quality Pneumatic Hydraulic Clinching Tool for Sheet Metal Joining

US$4,680.00
1-2 Set
US$4,550.00
3-4 Set
US$4,350.00
5-9 Set
US$4,150.00
10+ Set

Basic Info.

Model NO.
CEC08-01
Power Supply
Pneumatic Hydraulic
Warranty
1 Year
Certification
CE, ISO
Overall Dimension
1200*850*2180mm
Air Supply
6bar
Color
Can Be Customized
Joint Material
Galvanized Sheet,Stainless Steel,etc.
Joint Thickness
From 0.5mm to 2.0mm
Throat Depth
500mm
Transport Package
Fumigation Wooden Box
Specification
540kg
Trademark
SIMITCH
Origin
Jiangsu, China
HS Code
8463900090
Production Capacity
1000set/Per Year

Packaging & Delivery

Package Size
1250.00cm * 900.00cm * 2330.00cm
Package Gross Weight
610.000kg

Product Description

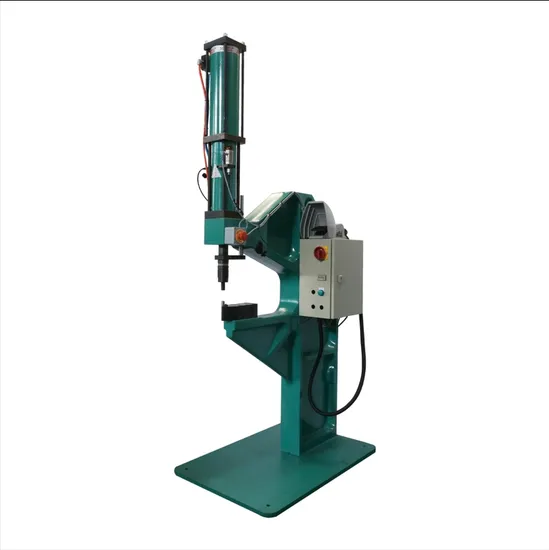

CEC 08-01 Model Pneumatic Hydraulic Self Clinching Machine
It is used for clinching sheet without rivets.
Application:
Galvanized sheet,Galvanized steel sheet, NO.316 Stainess steel sheet,copper sheet, Aluminium alloy sheet
Thickness of sheet, we can customized according to customers requirements,.
About air supply:2-6bar (2-6kg)
Pressure controller:
We will set pressure according to thickness of sheet material.
Pneumo-hydraulic drive cylinder
Electromagnetic valve function:
It can control gas circuit and reversing( up and down movement)
Idle stroke adjusting valve control valve
Molds:it is customized.
Model Capacity Air supply Leading time
CEC08-01 76KN 6bar 7 days
