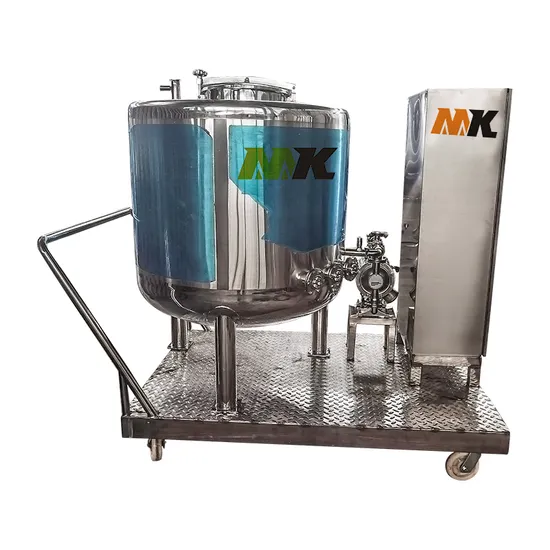

500L Mobile Vertical Stainless Steel Electric Heating Storage Tank
| US$7,050.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK-CG-5
Condition
New
Customized
Customized
Certification
ISO9001
Tank Marerial
SUS 304
Type
Customer Customization
Storage Objects
Liquid
Tank Body
Vertical Three-Layer
Does It Support Processing Customization
Yes
Source of Goods
Direct Deal
Cylinder Diameter
850mm
Heating Method
Electric Heating
Total Power of Electric Heating
12kw.H
Adaptation Field
Food, Beverage, Chemical, Oil Processing
Texture of Material
SUS 304
Structure
Movable
Plate Thickness
4mm
Transport Package
Wooden Box
Specification
500L
Trademark
Maike
Origin
China
Product Description
Product Overview Stainless steel storage tank is a kind of storage equipment, which has the advantages of convenient operation, corrosion resistance, convenient cleaning and shock resistance. It is one of the indispensable equipment for storage and transportation in production. The stainless steel tank is made of stainless steel, with internal and external polishing, which fully complies with GMP standards. Stainless steel tanks can be equipped with sterile air filters, thermometers, pressure gauges, mirrors, CIP cleaning balls, level gauges, etc., or according to customer requirements.Product Classification
1. It can be divided into vertical storage tank and horizontal storage tank according to the placement mode;
2. It can be divided into single-layer storage tank, double-layer storage tank and three-layer insulated storage tank according to the structure mode;
3. It can be divided into mobile tank and fixed tank according to the moving mode.
Technical parameter
| Type | Volume(L) | Inlet & outlet diameter(mm) | Overall dimension(mm) | Material |
| MK-CG-5 | 500 | 38 | W800×L1000×H2250 | SUS304/316L |
| MK-CG-6 | 600 | 38 | W920×L1000×H2300 | SUS304/316L |
| MK-CG-7 | 700 | 38 | W990×L1000×H2300 | SUS304/316L |
| MK-CG-8 | 800 | 38 | W950×L1220×H2500 | SUS304/316L |
| MK-CG-9 | 900 | 38 | W950×L1220×H2500 | SUS304/316L |
| MK-CG-10 | 1000 | 51 | W1060×L1220×H2550 | SUS304/316L |
| MK-CG-15 | 1500 | 51 | W1160×L1500×H2850 | SUS304/316L |
Note: The technical parameters of the storage tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
