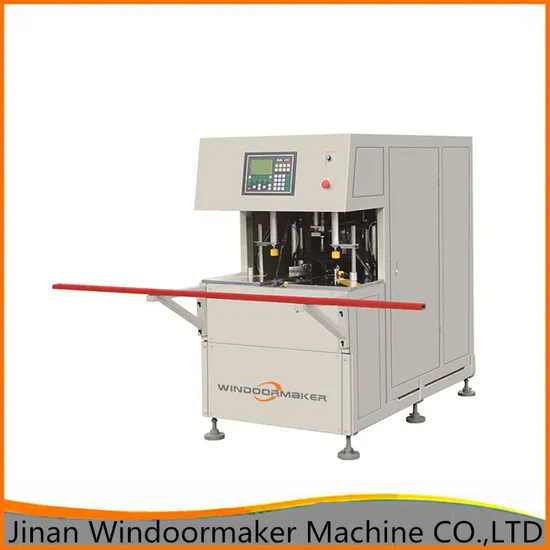

PVC Window Door Machine UPVC Window CNC Corner Cleaning Machine Plastic Window Door Processing Machine

Product Description

Product Description
Specification:
Used for UPVC window profile welding corner cleaning. CNC System can store more than 100 processing data. It can clean outside vertical surface, up/bottom welding seam. High precision processing due to size tolerance compensation function. Circular interpolation function to ensure the good cleaning result. YASKAWA servo motor system. Within 25 seconds finish one corner complete cleaning. Totally 4 cutters will be automatically cleaning surface, outside corner, vertical. No need tool change. Technical Parameter:

Air Pressure:	0.5MPa~0.8MPa
Air Consumption:	60L/min
Input Voltage:	380V 50Hz
Input Power:	3KW
Main Cutter Revolution:	2800r/min
Profile Height:	30mm~120mm
Profile Width:	20mm~120mm
Overall Dimension:	2000mmx1820mmx1500mm
Weight:	600kg

Certifications
Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.

Machine at old customer

Packaging & Shipping
