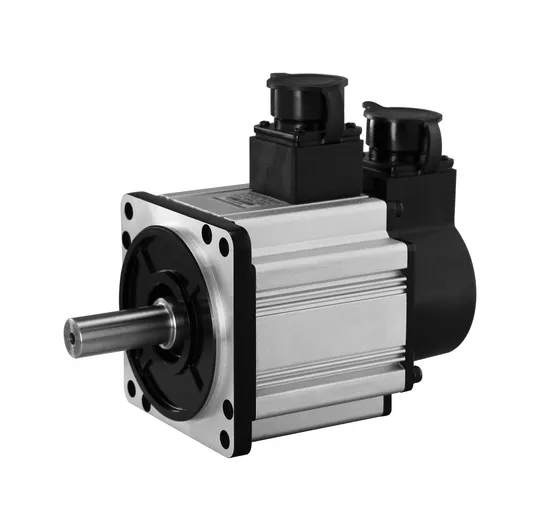

High Quality Factory Price 130mm AC Servo Motor for Sewing Machine
Basic Info.
Model NO.
130SE
Number of Stator
Single-Phase
Function
Control
Casing Protection
Open Type
Number of Poles
6
Starting Mode
Variable Frequency Starting
Certification
ISO9001
Brand
Holry
Length
130mm
Rated Voltage(V)
220
Rated Speed(Rpm)
2000
Transport Package
Carton
Specification
130SE
Trademark
HOLRY
Origin
Changzhou
HS Code
8501200000
Production Capacity
50000pieces
Product Description
| MODEL | 130SE510 020 | 130SE515 020 | 130SE520 020 | 130SE530 020 | 130SE530 015 | 130SE630 015 | 130SE630 015 |
| Rated Power(kW) | 1 | 1.5 | 2 | 3 | 3 | 3 | 3 |
| Rated Voltage(V) | 220 | 220 | 220 | 220 | 220 | 380 | 380 |
| Rated Speed(rpm) | 2000 | 2000 | 2000 | 2000 | 1500 | 1500 | 2000 |
| MAX Speed(rpm) | 3500 | 3000 | 3000 | 2500 | 2500 | 2500 | 2500 |
| Rated TORQUE(N.m) | 4.78 | 7.16 | 9.55 | 14.33 | 19.1 | 19.1 | 14.33 |
| Maximum Torque(N.m) | 14.34 | 17.9 | 23.88 | 35.83 | 38.2 | 38.2 | 28.66 |
| Rated Current(A) | 5.6 | 7.2 | 10.2 | 11 | 16.8 | 9.8 | 10 |
| Rotor Inertia(×10-4kg.m2) | 6.1 | 7.9 | 11.1 | 13.2 | 13.2 | 15.8 | 11.4 |
| Rotor Inertia(×10-4kg.m2)(Brake) | 6.4 | 8.2 | 11.4 | 13.5 | 13.5 | 17.1 | 13.6 |
| Torque Constant(N.m/A) | 0.85 | 0.99 | 0.94 | 1.3 | 1.13 | 1.95 | 1.43 |
| Back EMF(V/krpm) | 54.7 | 62.5 | 56.6 | 81.9 | 71.1 | 124.8 | 89.5 |
| Resistance(Ohm) | 0.96 | 0.75 | 0.49 | 0.48 | 0.46 | 1.26 | 1.07 |
| Inductance(mH) | 10.5 | 8.5 | 5.6 | 6.1 | 5.5 | 20.9 | 11.43 |
| Electrical Constant(ms) | 10.9 | 11.3 | 11.4 | 12.7 | 11.9 | 16.6 | 10.68 |
| Insulation Class | F | ||||||
| IP Rating | IP54/IP65(oil seal) | ||||||
