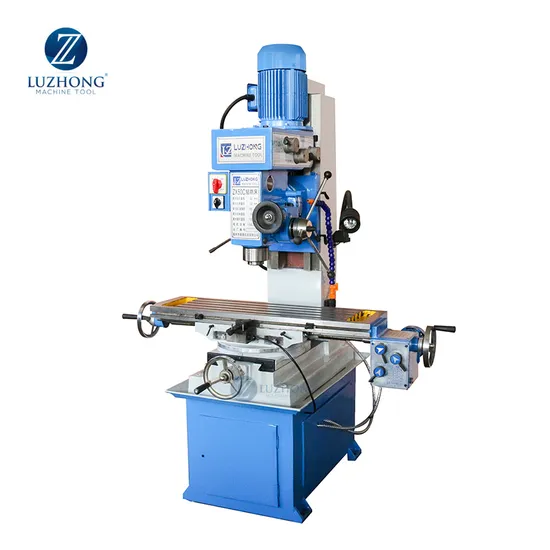

Universal Metal ZX7025 Vertical Drilling And Milling Machine for sale
Basic Info.
Model NO.
ZX7025
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Universal Metal ZX7025 Vertical Drilling And Milli
Max Face mill capacity
63mm
Drilling capacity
25mm
Spindle travel
110mm
Diameter of vertical milling
13mm
Max. Distance spindle nose to table
510mm
Spindle taper
MT3
Spindle speeds range
290-2150r/min
Spindle speeds series
5
Dimension of worktable surface
555*195mm
Distance spindle axis to column generati
240mm
Transport Package
Plywood Case
Specification
870*670*1020mm
Trademark
Luzhong
Origin
China
HS Code
8459290000
Production Capacity
100
Product Description
Universal Metal ZX7025 Vertical Drilling And Milling Machine for saleProduct Description
Product Parameters
Product main technical Specifications:
| Specifications | ZX7025 |
| Max. Drilling capacity (mm) | 25 |
| Max. face mill capacity (mm) | 63 |
| Diameter of vertical milling (mm) | 13 |
| Spindle travel (mm) | 110 |
| Distance spindle axis to column generating line (mm) | 240 |
| Max. Distance spindle nose to table (mm) | 510 |
| Spindle taper | MT3 |
| Spindle speeds range (r/min) | 290~2150 |
| Spindle speeds series | 5 |
| Dimension of worktable surface (mm) | 555×195 |
| Table travel (mm) | 240×140 |
| Overall height (mm) | 1130 |
| Main motor (W) | 750 (6P) |
| G.W/N.W(Kg) | 190/160 |
| Packing dimension (cm) | 87×67×102 |
Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
