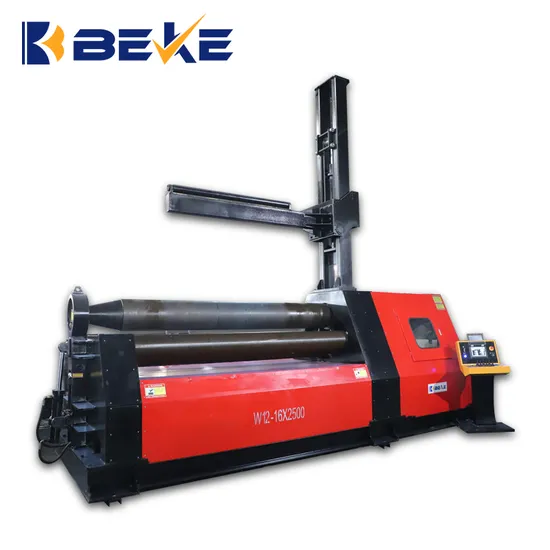

W12 3meter Plate Bending Rolling Machine Sheet Metal 4 Roller Hydraulic Rolling Machine
Basic Info.
Model NO.
W12 20X3000
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Roller-Bending Machine
Transport Package
Full Container
Specification
6400mmx2550mmx2250mm
Trademark
BEKE
Origin
China
HS Code
8462299000
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| ITEM | VALUE |
| Model | W12 12X3000 |
| Max. Thickness of Plate | 20mm |
| Max. Pre-bending Thickness | 16mm |
| Max. Width of Plate | 3000mm |
| The length of working rolls | 3100mm |
| Up roller diameter | 390mm |
| Bottom roller diameter | 360mm |
| Side roller diameter | 300mm |
| Minimum bending diameter | 600mm |
| Yield limit | 245MPa |
| Bending speed | 4m/min |
| Main motor power | 18.5kw |
| Weight | 19200kg |
| Dimension | 6400mmx2550mmx2550mm |
