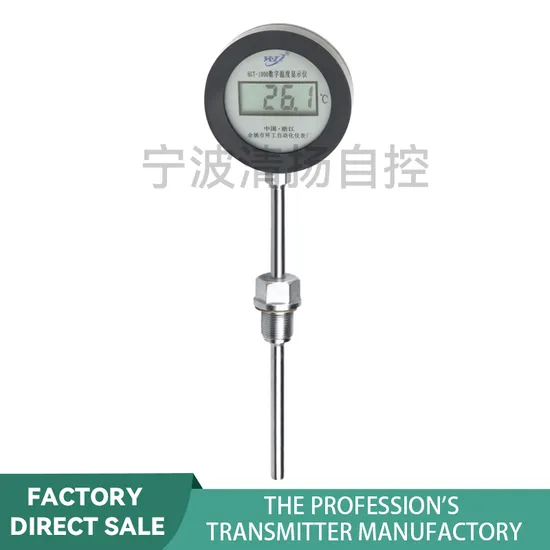

Battery Powered Temperature Display/Transmitting Instrument

Product Description

HGP-1000 series internal power supply temperature display/transmission instrument is a passive field display instrument, it is for the field can not be external power supply and the development of a new type of intelligent detection instrument, it adopts lithium batteries or five batteries for long-term power supply method, without external power supply, easy to install and use, its design is based on the platinum resistance in the temperature measurement of the excellent characteristics, the use of single-chip microcomputer technology to deal with the control, so as to make its Realize low power consumption, high precision, digital, it overcomes the pointer table low precision, visual value error, especially in the vibration occasions, the pointer and transmission mechanism is very easy to damage and other shortcomings. It is an ideal replacement for the widely used pressure thermometer, bimetal thermometer and glass thermometer.
Technical Parameter

Mileage range	-200~600ºCoptional	Ambient temperature	-20~60ºCoptional
Accuracy	0.5 grade	Vibration resistance	≤25HZ/1mm
Display	4-digit LCD	Battery specification	One 3.6V lithium battery

Product Features
Imported thin-film platinum resistance (Pt1000 or Pt100 temperature sensor) is chosen as the temperature measuring element.
Wide range, good linearity, high precision.
Large font, liquid crystal display, clear and intuitive readings.
Practical and beautiful fully sealed structure. Suitable for use in corrosive vibration and sputtering places.
Low power consumption measurement (interval time optional) micro-power consumption display, a lithium battery available for more than 2-3 years.
Intelligent calibration linear compensation.
Easy to operate.
And the interpolated value memory playback.
Calibration results are more accurate and reliable.
Instrument without mechanical transmission and wearing parts, long service life.
