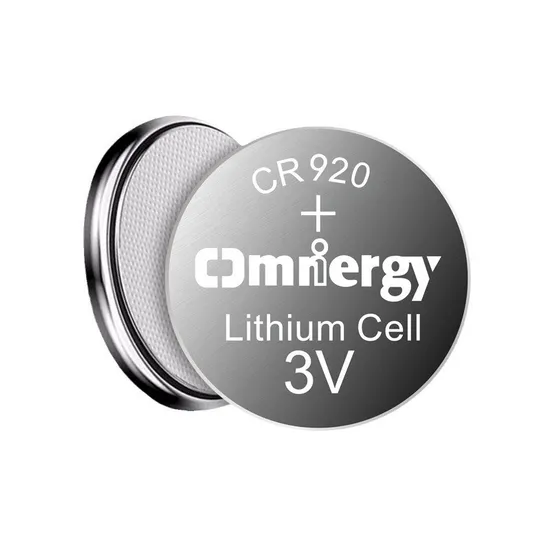

Manufacturer Omnergy Battery Cr920 3V Lithium Battery 20mAh Coin Cell Button Battery

Product Description

Technical Parameters

Model	Nominal Voltage (V)	Nominal Capacity (mAh)	Nominal Current (mA)	Maximum Continuous Current (mA)	Maximum Pluse Current (mA)	Max Dimension (mm)	Weight (g)
CR920	3	20	0.1	1	5	Φ9.5X2.0	0.55
CR927	3	28	0.1	1	5	Φ9.5X2.7	0.6
CR1025	3	30	0.1	2	5	Φ10.0X2.5	0.7
CR1216	3	25	0.1	2	5	Φ12.5X1.6	0.7
CR1220	3	38	0.1	2	5	Φ12.5X2.0	0.8
CR1225	3	50	0.1	2	5	Φ12.5X2.5	0.9
CR1616	3	50	0.1	3	8	Φ16.0X16	1.2
CR1620	3	70	0.1	3	8	Φ16.0X2.0	1.3
CR1632	3	120	0.2	3	8	Φ16.0X3.2	2
CR2016	3	80	0.1	5	15	Φ20.0X1.6	2
CR2020	3	120	0.1	5	15	Φ20.0X2.0	2.2
CR2025	3	150	0.2	5	15	Φ20.0X2.5	2.6
CR2032	3	220	0.2	5	15	Φ20.0X3.2	3.2
CR2050	3	330	0.4	5	15	Φ20.0X5.0	4.7
CR2320	3	130	2	6	20	Φ23.0X2.0	3
CR2325	3	190	2	6	20	Φ23.0X2.5	3.3
CR2330	3	260	2	6	20	Φ23.0X3.0	4
CR2335	3	300	2	6	20	Φ23.0X3.5	4.3
CR2354	3	560	0.4	6	20	Φ23.0X5.4	6.9
CR2430	3	270	0.2	7	25	Φ24.5X3.0	4.5
CR2440	3	480	0.4	7	25	Φ24.5X4.0	5.4
CR2450	3	600	0.4	7	25	Φ24.5X5.0	6.8
CR2477	3	1000	0.6	7	25	Φ24.5X7.7	10.5
CR3032	3	500	0.4	10	30	Φ30.0X3.2	6.8
CR3832C	3	850	0.8	20	75	Φ38.0X3.2	11

More Products

Battery Type	Battery Picture	Battery Application
CR Normal Type		Computer. Electronic scale, blood glucose meter, POS machine. Toy cars, motherboards, electronic watches
CR-P/H(Higher Capacity)		Communication, smart home, RFID,GPS, smart bracelet, car key, bank key, ESL
CR-D(-55-60ºC)		Cold chain transport, ESL
CR-T(-40-85ºC)		Industrial control machine, Processor,Outdoor monitoring
CR-HT(-40-125ºC)		TPMS
BR Series		Industrial computer, server, set-top box, smart meter, vehicle GPS, security monitoring, photovoltaic inverter
LSC Series		Smart transportation(ETC,OBU), smart meters
ML Series		Notebook, small appliance, instrument, timer, motherboard
CR Cylindrical Type Batteries		Security alarm, digital camera, temperature monitor, smart meter, positioning device
CP Pouch Cell		Active RFID. Bank card, GPS, security alarm, wireless remote control, industrial instrument,ESL

Company Introduction
Power Glory Battery Tech (Hubei) Co., Ltd., founded in 2004, is a national high-tech enterprise specializing in the research, development, manufacture and sales of micro lithium power supplies. With over 20 years of steady development, the Group now has 4 wholly-owned subsidiaries, namely, Yichang Power Glory Battery Technology Co. Ltd., Wuhan Bonnee Technology Co., Ltd., Changzhou Litai New Energy Technology Co., Ltd., and Power Glory Battery Tech (HK) Co., Ltd. As a well-known enterprise in the micro lithium power supply industry in China, the company is a national high-tech enterprise and one of the drafting and formulating units of the national standard of the primary battery.
The main series of products include the micro lithium manganese button cell, micro lithium fluorocarbon button cell, micro lithium manganese primary soft pack battery, micro lithium aluminum alloy rechargeable button cell, and lithium-ion battery capacitor. As a global company with the most complete product categories, models and specifications of the primary micro lithium power supply, it has a wide range of product applications in consumer electronics, electronic price tags, smart medical, smart security, smart high speed, smart meters, tire pressure monitoring systems, IoT and other fields.
All the technical indexes of our products have reached or even exceeded international standards, and have been certified by IATF16949, ISO9001, ISO14001, UL, CE, RoHS, UN38.3, etc. As all technical indexes meet or even exceed IEC international standards and Japanese JISC8512 standards, our products have established good brand awareness and corporate image in the market, thus exporting to Asia, Europe, America evil and other regions, and establishing long-term and stable cooperative relationships with many famous consumer battery brand enterprises around the world.
The company attaches importance to the development of products. Up to now, the company has owned 87 patents, including 9 for inventions and 78 for utility models, which creates a proprietary intellectual property system. With the world's cutting-edge power supply technology as our pursuit, we aim to be among the world's most advanced ranks and revitalize China's micro lithium power supply as our mission.
Applications

Memory Power Supply	Computer Motherboard, POS Machine, RTC, Electric Cooker, As CMOS backup memory power supply
Consumer Goods	Remote Control, Weighing Scale, Blood Glucose Meter, Blister Cards for Retail
Smart City Products	CPC Card, Smart Meter, Security Alarm Device
Intelligent Life Products	Locator, Smart Home Security Products, ESL, Dynamic Token
Automotive Electronics	Car Key, TPMS
Else	Led Light, Watch, Electronic Toy, 3D Glasses

Q&A Q1: Do you offer OEM or ODM service?
A1: Yes, we provide sufficient services in both of our brand (Omnergy) products and OEM/ODM products.
Q2: What is minimum order quantity (MOQ)?
A2: Depends on different battery models. Basically, the MOQ is the quantity of products filled with 1 standard packing box. For example, the MOQ for CR920 is 4000.
Q3: What is the packaging of your products?
A3: Basically we provide industrial bulk packaging, but we can also do blister card packaging and other customized packaging as client's requests.
Q4: How long time you can ship the goods?
A4: 15~30 days after PO confirmed till goods readiness for shipment.
Q5: Can you send some samples if possible?
A5: Yes, please send us the address and we will arrange samples for you for quality test before mass production.
Q6: How do you take payment?
A6: Most of time TT 30% in advance and 70% before shipme
