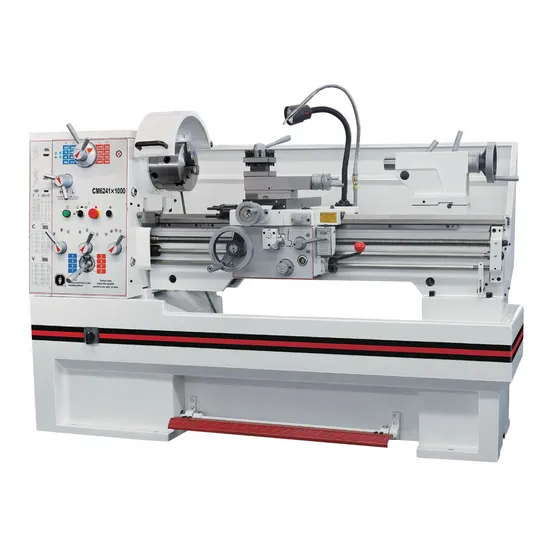

Precision Bench Manual Lathe Machine Price Horizontal Parallel Mechanical Lathe Machine Lathes for Metal

Product Description

Precision Bench Manual Lathe Machine Price Horizontal Parallel Mechanical Lathe Machine Lathes for Metal # 2 Axis digital readout system (optional)# Quick change toolpost with 5 holders (optional)# Concertina leadscrew cover (optional)# Gear drive headstock for quick change of spindle speeds# Precision V-beds are hardened and ground, incorporating a rigid webbed casting# Foot operated spindle brake with safety cut out switch# Change gears for metric and imperial thread cutting# Adjustable taper roller bearings support the spindle# Inching button is incorporated on the control panel for convenient spindle speed selection# Enclosed quick action gearbox for thread cutting and auto feeding# Powered longitudinal and cross feeds# D1-6 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard# Removable gap bed-way for larger diameter jobs

technical parameter	Specification	Models
		CM6241×1000/1500	CM6241V×1000/1500
Processing range	Capacity
Maximum workpiece turning diameter on the bed	Swing over bed	410mm(16")
Maximum workpiece turning diameter on the carriage	Swing over cross slide	255mm(10")
Maximum turning diameter in the saddle groove	Swing in gap diameter	580mm(23")
Active length of the saddle in front of the faceplate	Length of gap	190mm(7-1/2")
Two top center distance	Admits between	1000mm(40")/1500mm(60″)
Spindle center height	Center height	205(8″)
Bed width	Width of bed	250(10")
Spindle	HEADSTOCK
Spindle end	Spindle nose	D1-6
Spindle through hole diameter	Spindle bore	52mm(2")
Spindle bore taper	Taper of spindle bore	No.6Morse
Spindle speed range	Range of spindle speed	16 changes 45-1800r/min	30-550r/min or 550-3000r/min
Feed and thread	FEEDS AND THREADS
Small pallet maximum longitudinal stroke	Compound rest travel	140mm(5-1/2")
Middle carriage maximum lateral travel	Cross slide travel	210mm(8-1/4")
Large screw specifications	Lead screw thread	4T.P.I.
The maximum size of the cutter bar (width × height)	Max.Section of tool (W×H)	20×20mm(13/16")
Longitudinal feed range	Longitudinal feeds range	0.05-1.7mm/rev(0.002"-0.067"/rev)
Horizontal feed range	Cross feeds range	0.025-0.85mm(0.001"-0.0335"/rev)
Metric thread range	Threads metric pitches	39kinds 0.2-14mm
Inch thread range	Threads imperial pitches	45kinds 2-72T.P.I
Diameter thread specification	Threads diametral pitches	21kinds 8-44D.P.
Modular thread specification	Threads module pitches	18kinds 0.3-3.5M.P.
Tailstock	TAILSTOCK
Tailstock sleeve diameter	Quill diameter	50mm(2")
Tailstock sleeve stroke	Quill travel	120mm(4-3/4")
Tail sleeve inner hole taper	Quill taper	No.4 Morse
Lateral adjustment	Cross adjustment	±13mm(±1/2")
Motor	MOTOR
main motor power	Main motor power	2.2/3.3kW(3/4.5HP)3PH
Cooling pump power	Coolant pump power	0.1KW(1/8HP),3PH
Dimensions and weight	DIMENSION AND WEIGHT
Dimensions (length × width × height)	Overall dimension(L×W×H)	194×85×132cm/244×85×132cm
Box size (length × width × height)	Packing size(L×W×H)	206×90×164cm/256×90×164cm
Net weight / gross weight	Net weight/Gross weight	1160kg/1350kg 1340 kg /1565 kg
