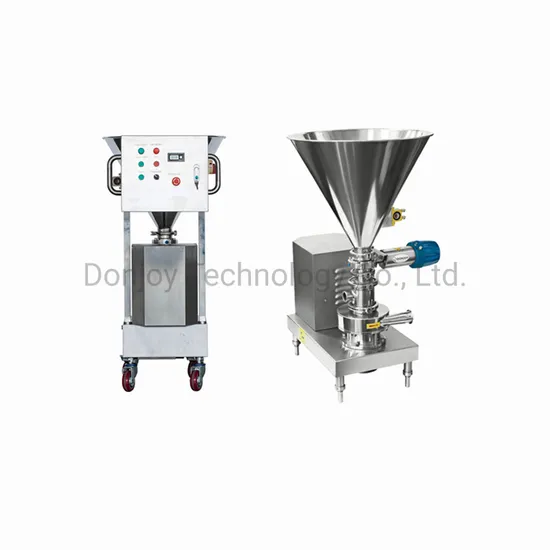

High Cleanliness Stainless Steel Mixing Pump with Control Panel
| US$1,698.00-5,998.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HHQ
Application Area
Food
Certification
3A, FDA
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Conical
Stirring Type
Spiral
Warranty
12 Months
Motor Power
3kw~15kw
Connection Way
Clamped, Threaded, Flanged etc.
Optional
Manual or Pneumatic Valve
Powder Capacity
9000kg/H
Viscous Capacity
3000kg/H
Max. Temperature
130 Degree Centigrade
Material
SS304/316L
Surface Treatment
0.8/0.6/0.4 Micrometer
Trolley
Optional
Mixer Type
Agitator
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
HHQ-10~60
Trademark
DONJOY & OEM
Origin
Wenzhou, Zhejiang, China
HS Code
8413709990
Production Capacity
200PCS/Month
Product Description
High Cleanliness Stainless Steel Mixing Pump with Control PanelHHQ series mixing pump is for mixing solid or powder into the liquid. It provides on-line perfect processing solutions for milk powder compounding, syrup making and brine making etc. It also can be used for preparing solid and powder mixing, in the industries of food and beverage, biopharmacy, traditional Chinese medicine making, cosmetics and chemicals.
ADVANTAGE
Solutions for emulsifying, mixing, adjusting, multi-tasking, powder and liquid mixing.
SPECIFICATION
| Product Name: | Mixing Pump |
| Valve Body Material: | SS304/SS316L/1.4301/1.4404 |
| Max. Flow: | 60m3/H |
| Seal material | EPDM (Standard, FDA approval) |
| Max. hopper volume: | 65L |
| Max solid suction volume: | 9000kg/h |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 3KW~15KW |
| Sealing option: | Single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 110V, 220V, 380V |
| Motor: | ABB |
| Surface treatment: | 0.8/0.6/0.4 micrometer |
| Connection way: | Clamped, Threaded, Flanged etc. |
| Standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | Electic |
| Option: | Manual valve or pneumatic valve, trolley, control panel |
| Certificate: | 3-A-02-10(N.O.1579), MD/06/42-EC(NO.70521616101-00), FDA 177.2600 |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or customerized. Or as per the request of customers |
