Jinko Tiger Neo N-Type Jkm580n-72hl4-Bdv 585W 580W 575W 570W 565W 560W 550W Watt Module Solar Panel Price Module Photovoltaic Ja/Longi/Mysolar/Trina Wholesale

Product Description

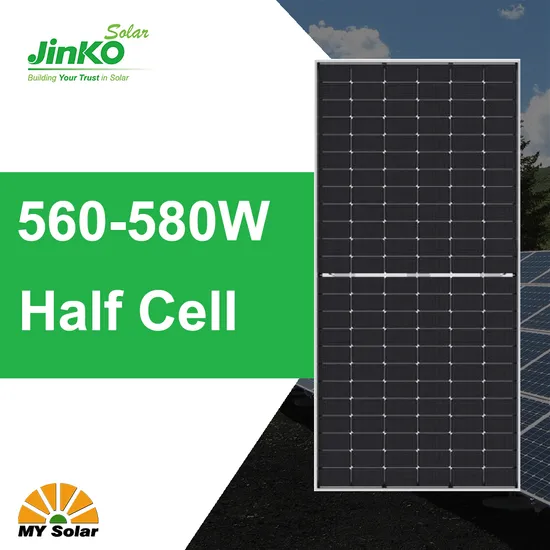

Jinko Tiger Neo N-type JKM570N-72HL4-BDV 570W 570 Watt Solar Panel

SPECIFICATIONS
Module Type	JKM560N-72HL4-BDV		JKM565N-72HL4-BDV		JKM570N-72HL4-BDV		JKM575N-72HL4-BDV		JKM580N-72HL4-BDV
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax)	560	421	565	425	570	429	575	432	580	436
Maximum Power Voltage(Vmp)	41.95	39.39	42.14	39.52	42.29	39.65	42.44	39.78	42.59	39.87
Maximum Power Current(Imp)	13.35	10.69	13.41	10.75	13.48	10.81	13.55	10.87	13.62	10.94
Open-circuit Voltage(Voc)	50.67	48.13	50.87	48.32	51.07	48.51	51.27	48.7	51.47	48.89
Short-circuit Current(Isc)	14.13	11.41	14.19	11.46	14.25	11.50	14.31	11.55	14.37	11.6
Module Efficiency STC(%)	21.68%		21.87%		22.07%		22.25%		22.45%
Operating Temperature(°C)	-40°C~+85°C
Maximum System Voltage	1500VDC(IEC)
Maximum Series Fuse Rating	30A
Power Tolerance	0~+3%
Temperature Coefficients of Pmax	-0.3%/°C
Temperature Coefficients of Voc	-0.25%/°C
Temperature Coefficients of Isc	0.046%/°C
Nominal Operating Cell Temperature(NOCT)	45±2°C
Refer.Bifacial Factor	80±5%

Δ What is the difference between Tier 1 Solar Panel and not Tier 1 Solar Panel?
The main difference of the solar panel price is between Tier 1 Solar Panel and not Tier 1 Solar Panel.
If you order the mainstream solar panel --- cell size 166*166mm or 182mm*182mm (210*210mm will soon becoming popular), cell number 54pcs,60pcs, 72pcs, watt :365-670W), you can get the lower price, because our factory or others' have the stock. But we also can do the customized order, you can chose the cell battery IBC,TYPE P-perc or type N-I-TOPCON), mono or poly, Monofacial or Bifacial, size, watt and so on.
If you are interesting in stock panel, please contact me.
Δ How to choose a solar panel?
This guide will help you to choose the best solar panel for your project. Use this handy reference table to compare the facts. Quickly see the difference in features, performance, warranty and more. Make an informed decision so you know what you are buying. However, these products are ever-changing, with new models or capabilities being added all the time.

Power Range, Watts	310 - 410	400-455	455-670
Description	Best fit for residential,Household	Highest power and best value for larger roofs or ground mount, commercial or industry	Best choice of utility
Cell size	166*166mm(60Pcs) 182*182mm(54pcs)	166*166mm(72Pcs) 182*182mm(54pcs)	166*166mm(72Pcs) 182*182mm(72pcs) 210*210mm(60pcs)
Frame	Silver or black	Silver or black	silver
Efficiency	19.2% to 21%	20% to 21.1%	20% to 21.57%
Warranty	10 YEARS product warrant, 25YEARS Power Output Warranty

MY SOLAR TECHNOLOGY CO., LTD.established in December 2010, is a member of MY Solar group, which is specializing in the desian, manufacture and sales of PV modules and correlative products.Our management team is experienced and professional. Our core products - PV modules, are rational designed, excellent in workmanship, and have a stable performance, power range covers 3Wp-400Wp, are widely used in photovoltaic power stations, BIPV & BAPV, satellite communications, geological monitoring andforest fire prevention, etc. Our products are exported to Europe, America, Asia- Pacific and Africa.MY Solar is a core supplier of many key large projects in China, and is also a supplier of photovoitaic modules and correlative products which is selected, trusted and recommended by many professional designing institutes.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands,such as Longi,JA solar,Jinko,Trina,Canadian Solar,GCL,SUNTECH,Yingli etc., to provide customers with better prices and more choices.
Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
Q:Where is the port of loading?
A:Shanghai,Ningbo.
Q:Can you do OEM?
A:Yes.
