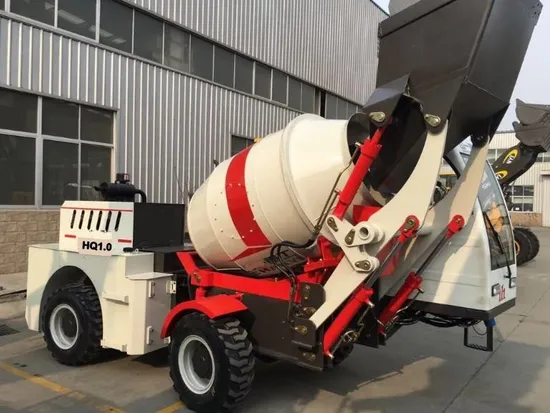

High Quality 1.0m3 Small Mobile Concrete Mixer (HQ1.0) for Sale

Product Description

Haiqin Brand Self-Loading Mobile Concrete Mixer (HQ1.0) introduction .
Product Features: Italy leading design,automatic feeding mixing system
Simple and convenient operation
High efficiency output ,save time and effort,cost saving
Mixing tanker and loading vehicle combo perfect combination
Warranty 12 months,perfect after-sales service
Specifications:
Diesel engine
Model: YN27GBZ
Total displacement cylinder number: 2700ml--4 cylinder inline
Injection: Direct injection ,mechanical control
Cooling system: Water--cooling,Dry air filter
Max power: 55kw (75 hp)
Max torque: 237nm@2000 r\ minute
Electrical system
Alternator: 28V--500WA (18A)
Battery: 2*12V--60AH (272A)
Road Lighting System
Steering System:
2 wheel steering, the steering is assisted by a double displacement load-sensing power steering system on 2 steering wheels
4*4 Four-wheel drive
Hydraulic torque converter,open hydraulic gear pump,reverse gear control device.Control "working speed"and "moving speed"
Speed:
2 forward gears 2 reverse gears
The first gear: 0--7km\hour 0--7km\hour
The second gear: 7--20km\hour 7--20km\hour
Axle And Tires
Front axle, steering ,Isuzu Axle,the axle is equipped with a planet reduction gear
Rear axle ,Swing ( ± 28° ) , the axle is equipped with a planet reduction gear
Tyre: ...12-16.5-12PR, max load: 2540kg,450kPa, RIM:9 75
Brake
The internal hub-type travel brakes and emergency brakes act on 4 wheels,using a small servo pump on the dual loop.Negative pressure type parking brake, the front axle is equipped with an internal hub.
Water Supply System
"Self-priming" 24v large capacity pump,with fast absorption function.
Max flow: ............90L\minute
Total capacity of a water tank: ............175L
The water intake of the cylinder is controlled by the electromagnetic flow meter and the water intake reading on the display screen of the operating water
Sit on the side of the driver's seat to enable the pump
Equipped with high pressure pump to flush vehicle
Mixing And Unloading:
Double cone cylinder with double spiral stirring screw and middle convex bottom
Drum geometric capacity: ..........2200L
Drum rotation speed: ..........15r\minute
Concrete Production: ..........1.0cbm\tank
The rotation of the roller is achieved by the cycloidal hydraulic motor of the open circuit of the gear pump
The unload chute is tilted by a manually adjustable handle
Removable chute can be guaranteed to be unloaded directly through the hopper
As a standard configuration , 1 chute extension is provided
Removable chute can be guaranteed to be unloaded directly through the hopper
As a standard configuration , 2 chute extensions are provided
Equipment Hydraulic System
Gear Pump: De Hong brand
Maximum Flow: .......... 20\40L\minute
Maximum Pressure: ..........16MPa
3 handle multi-function joystick
Aluminum heat exchanger for cooling hydraulic oil
Open oil inlet,hydraulic oil filter can be replaced from outside
Load
The loading arm is equipped with an automatic weighing sensor, a double acting loader lifting and resetting the cylinder, manual control of the feed port has a standard prompt function
Capacity: ..........270L
Be filled with 5 times
Operating Room
Closed operating room with heating\cooling system inclined front window.
Humanized seat with flexible suspension and height adjustment function
Maintenance filler
Fuel tank: ..........110L
Total capacity of hydraulic system: ..........110L
Machine oil: ..........16L
Weight
Operating weight: ..........4500kg
Maximum total weight: ............6900kg
Maximum load weight:..............2400kg
