500L Large Capacity Electric Planetary Volumetric Self Loading Machine Concrete Mixer Price

Product Description

Multiple Product Series
Product Description 500L Large Capacity Electric Planetary Volumetric Self Loading Machine Concrete Mixer Price This vertical shaft planetary mixer(0.5 cubic),with compact structure and stable transmission Hydraulic pump station: The unloading method adopts hydraulic unloading (pneumatic unloading is optional), and the unloading door can be opened manually in an emergency. Inspection door: safe and convenient inspection; the mixing condition can be observed during operation without cutting off the power supply. Stirring device: The stirring principle is revolution + rotation. The stirring blade is designed as a parallelogram structure to improve the utilization rate and life of the blade.. Water channel device: upper water channel, the nozzle adopts spiral solid conical nozzle, uniform atomization effect, uniform stirring. High mixing efficiency, uniform mixing, no dead angle, 1 planetary shaft, 2 mixing arms, 1 unloading scraper, 1 side scraper. Hydraulically driven discharge door opens and close.

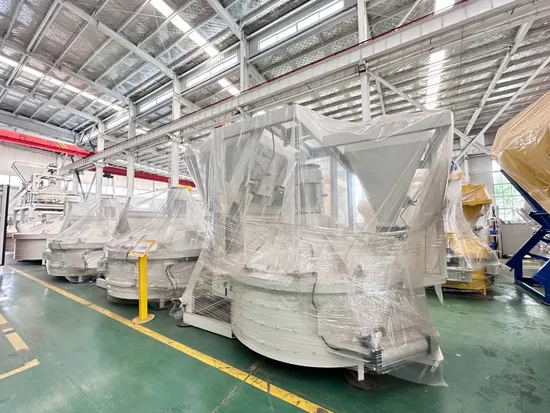

Factory Production Line Mittelrhein international company is located in Shandong Logistics Center, main heavy mixing equipments such as Large Capacity Diesel Portable Mini Concrete Cement Mixers Machine, Mobile Batching Plant with Concrete Twin Shaft Mixer for Construction Site, Factory price Refractory mixer Counter Current Planetary Concrete Mixer Price for Sale, featuring high-efficiency domestic logistics in China and low-cost logistics expenses.
Shandong is a major heavy industry hub in China. Located many Vertical Shaft Planetary Concrete Mixer Highly Efficient Mixing Machine Construction Machinery factory there. With 20 years of procurement history, our team provides efficient and high-quality services. We have long-term partnerships with hundreds of different factories, all of which have passed our product quality selection.
The advantages to you:
Versatile - Different consistencies can be processed in the mixer, from dry to plastic and pasty. Fast and effective - Hiqh mixing qualities are obtained already after short mixing times. Scale-up without limit - The linear transfer of the test results to industrial scale is possible
The multi-functional mixing system can be used for many different applications, e.g. for mixing, granulating, coating, kneading, dispersing, dissolving, defibering and many more.
Our international procurement team is dedicated to providing high-quality products and reliable after-sales services, solving the after-sales issues of overseas buyers. Our international logistics have also been carefully selected. The long-term partner logistics companies possess highly flexible control capabilities, whether it is rail transportation, sea transportation, or combined transportation. The routes and emergency transfer operations are very mature and experienced, which can better reduce unnecessary effort, time, and shipping cost losses for our customers.
Our Advantages
Product Parameters

Type concrete mixer	CMP50	CMP100	CMP150	CMP250
Output capacity(L)	50	100	150	250
Input capacity(L)	75	150	225	375
Output weight(Kg)	120	240	360	600
Mixing power(Kw)	3	5.5	7.5	11
Dischar ging power(Kw)	optional
Planet/mixing arm	1/2	1/2	1/2	1/2
Paddle(nr)	1	1	1	1
Discharging paddle(nr)	1	1	1	1
Weight(Kg)	700
Lifting power(Kw)
Dimension(L*W*H,mm)	950*790*1200	1670*1460*1450	1670*1460*1620	1860*1650*1780
Type concrete mixer	CMP330	CMP500	CMP750	CMP1000
Output capacity(L)	330	500	750	1000
Input capacity(L)	500	750	1125	1500
Output weight(Kg)	800	1200	1800	2400
Mixing power(Kw)	15	18.5	30	37
Dischar ging power(Kw)	optional
Planet/mixing arm	1/2	1/2	1/3	2 / 4
Paddle(nr)	1	1	1	1
Discharging paddle(nr)	1	1	1	1
Weight(Kg)			3900	6200
Lifting power(Kw)			7.5	11
Dimension(L*W*H,mm)	1870*1870*1855	2230*2080*1880	2580*2340*2195	2890*2602*2220

Packaging & Shipping After Sales Service
1.24 hours support.
2.Arrange the install and test without delay.
3.One year guarantee for probems caused by quality.
4.Supply spare parts in time.
5.Engineers can conduct on-site surveys as requested by the client.
