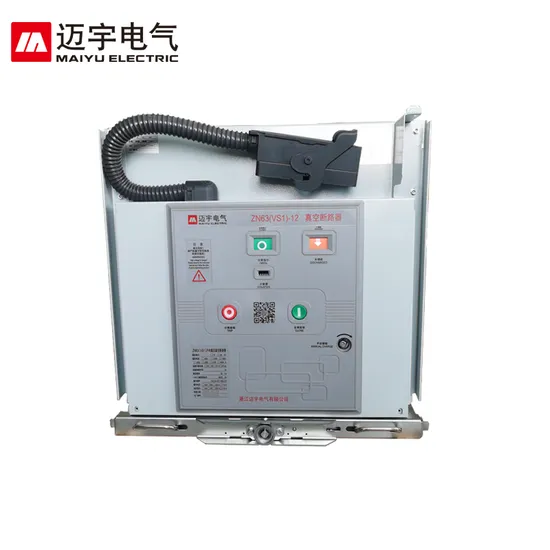

Medium Voltage Circuit Breaker Vs1 Vcb Sealed Pole Vacuum Circuit Breaker

Product Description

Company Profile
Zhejiang Maiyu Electric Co. , Ltd. is a professional manufacturer, high voltage vacuum circuit breaker series, indoor high voltage vacuum circuit breaker series, load switch series, lightning arrester series, high voltage disconnector series, drop fuse series, grounding switch series, cable box series and other electrical equipment companies, the company is composed of a group of people engaged in electrical industry for many years, with professional technical research and development and product sales team, perfect production equipment, integrity management, strict quality control. The company carries out the development strategy of Management Innovation, people-oriented management and technology leading. The company attaches great importance to product R & D and Innovation, has a professional technical team, set up product R & D Center, breakthrough industry technical bottlenecks, continuous innovation, enhance the market competitiveness of products, to meet the actual needs of customers. Companies adhere to the "Technology-led", "Quality to survive", Seek truth from facts, development of business purposes, dedicated to provide customers with a full range of Product Parameters
Zn63 (VS1) - 12 series indoor handcart type high voltage vacuum circuit breaker is an indoor switchgear with three-phase AC 5ohz and rated voltage of 12kV. It can be used for the control and protection of industrial and mining enterprises, power plants, substations and electrical facilities, and is suitable for places with frequent operation. The operating mechanism is integrated with the circuit breaker body, which can be used as a fixed installation unit or a special propulsion mechanism to form a handcart unit. The main circuit part can adopt the integral fixed sealing pole to realize the miniaturization, high reliability and maintenance free of the circuit breaker. It can be equipped with kyn28a-12 (GZS) and other middle mounted handcart type switchgear, and the fixed type can also be used for XGN series fixed switchgear.

serial number	Projects		unit	data
1	Rated voltage		KV	12
2	Maximum operating voltage		KV	12
3	Current rating		A	630 1250	630,1250 1600,2000 2500,3150		1250,1600 2000,2500 3150,4000
4	Rated short-circuit breaking current (rated thermal stability current - RMS)		KA	20/25	31.5		40
5	Rated short-circuit closing current (peak)		KA	50/63	80		100
6	Rated Peak Withstand Current (Rated Thermal Stability Current - RMS)		KA	50/63	80		100
7	4S rated short-circuit withstand current		KA	20/25	31.5		40
8	Rated insulation level	Working withstand voltage (before and after rated breaking) 1min power frequency withstand voltage	KV	To the ground 42 (fracture 48)
		Edge horizontal impulse withstand voltage (before and after rated breaking) / rated lightning impulse withstand voltage peak		To the ground 75 (fracture 85)
9	Rated thermal settling time		S	4
10	Rated sequence of operations			Minutes - 0.3S-combines-180S-combines
11	Mechanical life		times	10000
12	Rated number of short-circuit interrupting currents		times	50
13	Rated closing voltage of operating mechanism (DC)		V	AC,DC110,220
14	Ratde, Openin, Voltaji, Ben, Opelatin, Mechanism (DE)		V	AC,DC110,220
15	Contact opening distance		mm	11±1
16	Overtravel (contact spring compression length)		mm	3.5±0.5
17	Three-phase splitting, closing bounce time		Ms	≤2
18	Contact closing bounce time		MS	≤2
19	Average opening speed		m/s	0.91.2
20	Average closing speed		m/s	0.59.8
21	Opening time	at the highest operating voltage	S	≤0.05
		at the lowest operating voltage		≤0.08
22	Closing time		S	0.1
23	The resistance of the main loop of each phase		μΩ	630≤50		1250≤45
24	Static and dynamic contacts allow for wear and accumulated thickness		mm	3
