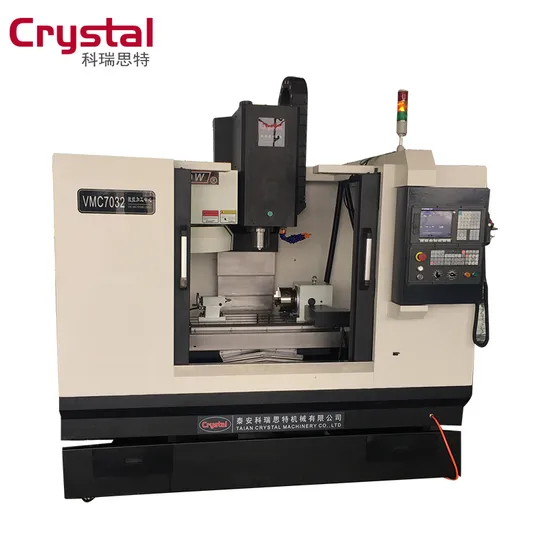

3axis Vertical CNC Milling Machine Center Vmc7032
| US$23,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC7032
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1000X320mm
Max. Travel of Table ( X, Y, Z )
610X320X400mm
Distance of Spindle Head to Table
130-550mm
Spindle Speed
8000rpm
Spindle Taper
Bt40
Positioning Accuracy
0.015mm
Spindle Motor Power
3.7/5.5 Kw
Tool Magazine Capacity
12
Max. Tool Size
100mm
Warranty
2 Years
Transport Package
Wooden Case
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
35 PCS/ Mounth
Product Description
3axis vertical cnc milling machine center VMC7032This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping and boring etc.
Product Display
VMC7032 Vertical Machining Center Features:
1.Taiwan BT40 Spindle
2.Taiwan ball screw and locking nut
3.Umbrella type tool Magazine, 12 tools
4.Fully-guarded type machine
VMC7032 Vertical Machining Center Specifications:
| Specifications | Unit | VMC7032 |
| Table Size (L*W) | mm | 800×320 |
| Travel of x,y,z axis | mm | 610/320/400 |
| Max, table load | kg | 400 |
| T-slot Size | mm | 3-14-100 |
| Center distance | mm | 100 |
| Spindle taper | -- | BT40 |
| Spindle center to Column guide distance | mm | 376 |
| Spindle end face to table distance | mm | 130-530 |
| Max speed | rpm | 8000 |
| Spindle motor power | KW | 3.7/5.5 |
| Spindle drive | -- | Belt transmission |
| Positioning accuracy | mm | 0.015 |
| Repeat Positioning accuracy | mm | 0.0075 |
| Rapid feed of X/Y/Z | mm/min | 1000 |
| Cutting feed of X/Y/Z | mm/min | 6000 |
| Tool Magazine Capacity | tools | 12 |
| Max. Tool size | mm | 100 |
| Max. Tool weight | kg | 8 |
| Machine Weight | Kg | 3000 |
| Dimension | mm | 2280*1760*2200 |
| Power | -- | 3 phase 380V, |
VMC7032 Optional Configurations:
1. System: KND2000M, FANUC, Siemens etc.
2. Spindle speed: 10000rpm
3. Fourth axis with 125°dividing head
4. Fifth axis
5. 16 pieces arm type ATC
