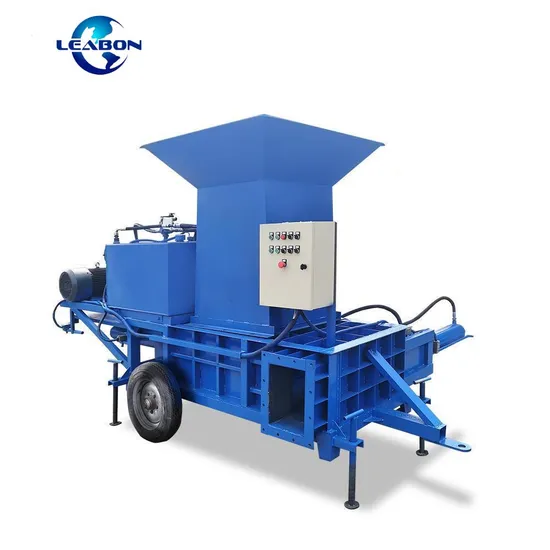

Livestock Feed Hydraulic Baler Hay Alfalfa Straw Square Baling Machine

Product Description

Livestock Feed Hydraulic Baler Hay Alfalfa Straw Square Baling Machine
Product Description
2 Cylinders Silage Square Baler
The Baler is widely used for compressing and packing wood sawdust, wood shavings, corn stalk, fresh corn straw, hay and other agriculture materials into bags. It can compress and pack such agriculture material and make them into low volume and high density.
Feature
1.Compact structure, easy to operate, stable and reliable transmission, flexible and flexible.
2.Widely used for green storage and dry storage of forage in animal husbandry
3.Save storage space and prolong the feeding time of green straw
Product Parameters

Model	LB9YF-70
Power(kw)	15
Displacement hydraulic oil pump(L/min)	63
Cylinder pressure	18
Capacity(t/h)	3t-4t
Packing size(W*H*L)mm	300*400*700
Bag weight(kg/bag)	25-30
Weight of machine(kg)	1200
Dimension(L*W*H)mm	3800*2250*2000
Piston speed(distance of run/min)	3.7-4

Structure of 2 Cylinders Silage Square Baler
3 Cylinders Silage Square Baler
Automatic hydraulic silage baler is divided into double hydraulic and three cylinder hydraulic and can be customized. The machine needs manual bagging and tying. The automatic control cabinet starts the packaging with one key, and it takes about 30 seconds to pack one.Reduce the cost of feed transportation and storage, and reduce the labor intensity of workers
Technical Parameter

Model	LB9YF-7
Power(kw)	22
Cylinders(pcs)	3
Cylinder diameter (mm)	160mm ;180mm ;180mm;
Cylinder length(mm)	1730mm; 1300mm;1180mm
Capacity(bags/h)	150-180bags/h
Final Bale size(W*H*L)mm	280*380*700
Final bale weight (kgs)	60kgs/bag for silage straw
Dimension(L*W*H)mm	4150*2600*3400
Weight(kgs)	3300

Structure of 3 Cylinders Silage Square Baler
Raw Materials
The raw material that can be wood shavings, wood sawdust, rice husk, fresh corn straw, hay such as alfalfa and others agriculture material etc.
Final product
Application
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
Company Profile
Our Service
1) We can offer you one year warranty, except spare parts.
2) Professional and timely 24-hour after-sales service.
3) The relevant video of the machine installation and usage instructions will be provided to you.
4) We can provide you with different models to meet your different requirements.
5) We can also meet special voltage requirements.
Customer Feedback
FAQ

Q1:What is your raw material ? ------The raw material that can be wood shavings, wood sawdust, rice husk, fresh corn straw, hay such as alfalfa and others agriculture material etc.

Q2:What is this capacity? ------3t-4t/h

Q3:What's the machine application? ------Suitable for the following animals: cows, sheep, horses and so on.

Q4:How many size we can produce with this machine? ------You can choose any size according to you need.

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
