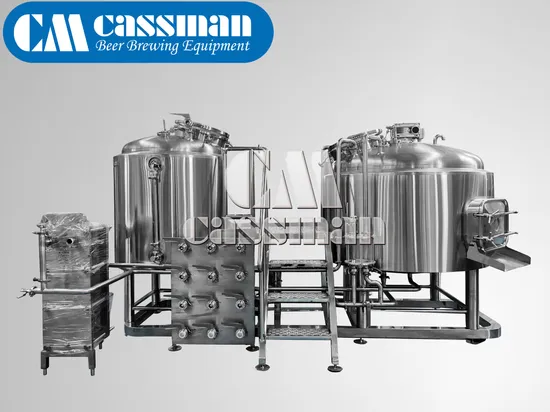

Cassman 1000L 2000L 3000L Brewhouse System Beer Brewing Equipment Microbrewery

Product Description

Cassman 1000L 2000L 3000L Brewhouse System Beer Brewing Equipment Microbrewery
Part 1 Beer brewery equipment suitable for:
-Pub/Restaurant micro Brewery
-Large Micro Brewery
-Recipe test& brewing beer teaching

1000l beer brewery equipment restaurant equipment
Brewing System	Components	Capacity	Specification
Grinding System	Miller	300-500KG/H	Double Roller,Noise<60db
Heating System	Boiler	100KG/H	Electric,Gas,Oil,Coal Type/CE certification
Brewhouse System	Mash/Lauter tun	1000L	Mashing Process:Decoction.Infusion.Multi-step infusion Heating source:Steam,Electric,Gas SUS304/Red copper Interior:2.5-3mm Exteior:3-4mm Stainless steel plate
	Brew Kettle/Whirlpool Tank	1000L
	Hot Water Tank	2000L
	Heat exchanger	10SQM
Fermentation System	Fermentation Tank	1000L/3000L	Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2
	Yeast Adding Tank	10L	SUS304 Stainless Steel
CIP System	Disinfection Tank	100L	SUS304 full welded
	Alkali Tank	100L
	Pump	3T
Control System	Control Cabinet	Manual/PLC/HMI	Manual/Semi-automatic/Automatic
Cooling system	Glycol water tnak	2000l	SUS304 Stainless Steel
	glycol water pump	3T	SUS304 full welded
	Chiller	10HP	For cooling
Optional	Auger System
	Grain Case
	Grist Hydrator
	Piping flow panel for Brewhouse
	Brewhouse Separate PLC Controller

Part 2 You May Like:
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example, a medium sized brewery with a focus on heavily hopped beers might choose to go with a combination Mash Lauter Tun, a dedicated Kettle, and a dedicated Whirlpool. Whereas, someone focusing on lagers or feeding a distilling operation might go with a dedicated Mash Tun, dedicated Lauter Tun, and a combination Kettle/Whirlpool.
Part 3 1000L Fermentation System
Our fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over-pressure and under pressure valve(PVRV), CIP arm, sanitary sample calve, manway, etc.
Part 4 Cooling System
Description: Air type chiller + Ice water tank or Glycol tank
Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank
Brand: Copeland, SANYO. Part 5 Control System
-PID or PLC system
-SIEMENS program S7-200, Siemens touch screen.
-Penumatic valves for optional
Part 6 Packaging & Delivery
6.1 the beer brewery equipment will be shipped by LCL/FCL ( 20GP/40GP/40HQ )
6.2. the 500l beer brewery equipment will be packed with plastic film in fumigation free wooden case or fixed with iron frame
6.3. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
6.4 Customers' requirements of the packages are available, Please tell us in advance.

Part 7 Sample Project
So far, we have exported the beer brewery equipment to many countries, such as Amercia, Canada, Poland, Portgual, Chile, Brazil, Spain, France, UK, Netherland, Czech Republic, Italy, Romania, Greece, India, Russia, Australia, South africa, South Korea and so on. In the meanwhile, there are many customers visited us to inspect the equipment quality and talked more about their project in our office/bar.
Part 8 About Cassman Factory&Service
1, Free consultation service before, during, and after sales.
2, Project planning and design services.
3, Free debugging instruction of equipment until everything is functional.
4, Management of equipments' long distance shipping from seller's factory to named port or station by buyer.
5, Training of equipment maintenance and operating personally.
6, New production techniques.
7, Provide 36 months complete warrantee for main parts and life-time maintenance service.
