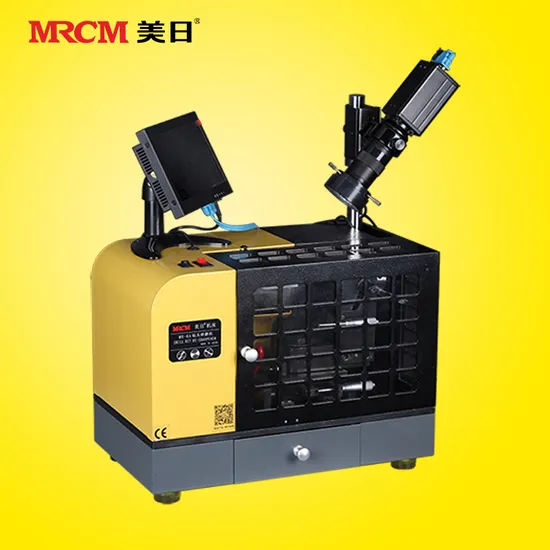

Mr-6A High Precision Small Drill Bit Grinding Machine

Product Description

Industrial Electric High Precision Drill Bit Grinder MRCM MR- 6A With Camera 1. MR-6A drill bit grinder .With the camera to set the drill grinding and do the measure after grinding. It can grind
the drill bit with flat relief angle and various point thinning. Grinding with travel block control ensures the bit high
accuracy, and not only the penetrating power, but also longer bit life.
2. Grinding is accurate and rapid, easy operation. Economical price that greatly reduces the cost and improves
the use effect.
3. The electrically controlled and poweful DC motor, stable frequency, strong horsepower and lone service life.

Specification

Model	MR-6A
Grinding Range	Φ(0.8)1-Φ6mm
Point Angle	95°-135°
Power	AC220V
Motor	250W
Speed	4400rpm
Dimension	62*34*33
Weight	40kg
Standard Equipment	Grinding wheel :CBN (for HSS)×1
	Eleven collets: Φ1,Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ4.5,Φ5,Φ5.5,Φ6
	Collet chuck:(Φ1-Φ6)×1
Option Equipment	Grinding wheel :SD (for Carbide)

Details: MR-6A
DRILL BIT SHARPENER,
More than15 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION

Still use a simple type of operation design, without any grinding experience can also quickly work,
Whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.
EASY TO DO THE DRILL SETTING
Camera positioning,more accurate,higer precision
EASY TO SHOW THE DRILL
Magnified projection location:130W pixel CMOS,effecitve pixel 1280(H)*1024(V),15 frame/second,definition 650VT-lines
EASY FOR DRILL GRINDING
The standard of high precision ER16 collet chuck set, special locking wrench,clamping faster,
higer precision,grinding easier,Precision grinding,fast and efficient

Standard accessories:

grinding wheel :CBN (for HSS) ×1

Eleven collets: ф3,ф4,ф5,ф6,ф7,ф8,ф9,ф10,ф11,ф12,ф13

collet chuck:(ф2-ф14) ×1

Optional accessories:

grinding wheel :SD (for Carbide)

ф2.5,ф3.5,ф4.5,ф5.5,ф14,ф15

collet chuck:ф15

FAQ

1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 79 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you
can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
