Retech Waste Plastic Pet Cocacola Bottle Flake/Drum/Pallet/PP/HDPE/LDPE/Rubber/Lump/PVC Pipe/PE Film/Woven Bags/ Crushing Washing Dewatering Recycling Machine

Product Description

Waste Plastic PET CocaCola Bottle Flake/Drum/Pallet/PP/HDPE/LDPE/Rubber/Lump/PVC Pipe/PE Film/Woven Bags/ Crushing Washing Dewatering Recycling Machine
Product Description

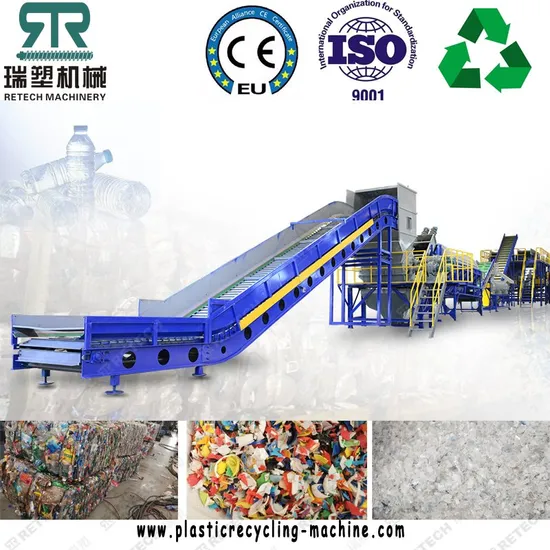

Retech Plastic PET bottle washing recycling line is used to recycle post-consumer PET bottles, water bottles, cola bottles, PET sheet and PET packing containers.
The key point of PET recycling system is the rate of removing the impurities.The higher purity PET flakes will improve the end product and lower the manufacturing cost of next processing.We could design different PET recycling solutions basis on the requirement of standards on final flakes.

Main advantages of plastic pelletizing machine Except for thermosetting plastics, all thermoplastics can be produced whether dry or wet. From raw material cleaning, crushing, feeding to making pellets are all automated. Equipped with a stainless steel constant temperature system, and the heat preservation effect is good. Less consumption, low cost and high profit. High wear resistance, corrosion resistance and long service life. The thickness of the material is uniform, the color is good, the quality of the recycled particles is high, and it can be used to color various products.
Structural features:
1. The equipment is a complete set of assembly line layout, which is controlled by the PLC automation programming and man-machine interface operating screen: reasonable coordination of intermediate transport and upgrading links and the sorting host for the purpose of automatic transmission and automatic discharge, which saves labor and can be easily operated.
2. High sorting purity, and the highest sorting purity can reach up to more than 99%.
3. Physical sorting, energy conservation and environmental protection without any discharge of the three wastes. Company Profile



Detailed Photos

Model of machine: RT-2000 PET bottle washing recycling plant Application: PET bottle recycling Output:2000kg/hr Features of RT 1000 LDPE film HDPE bottle washing line: (1)Big capacity from 500kg/h to 4000kg/h.
(2)Customize recycling solutions according to customer actual situations.
(3)High standard in fiber grade,food grade.
(4)Automaticlly running with PLC controller.
(5)Impurities: less than 200ppm.
Belt conveyor
Function: to transport unstrapped bale into Opener, which is strong enough for heavy bales
Bale opener
Function:to make the bottle bale separated
Mechanical label separator
Function: to remove the labels from the bottles, rate> 98 %( whole bottle), >95% (pressed bottle)
Manual sorting
Function:separating the color bottle, other material bottle, strong label bottles by people manual
Metal detector
Function:checking out all kinds of metals
Crusher
Function:crush the bottles to be flakes
Screw conveyor
Function:transporting the PET flakes to be next step
High speed friction washer
Function:remove out the strong dirties attached on the surface of the bottle flaked by friction of flakes hitting to the screen and each other

Floating washer
Function: immersing and rinsing the PET flakes and separating out the PET caps automatically
Hot washer
Function:wash out the strong dirties, dissolving the oil, glue on the surface of the bottle flakes
Dewatering machine
Function:removing water by powerful centrifugal to ensure the flakes moisture ≤1%
Label separator by air
Function:to remove the residual label tiny flakes and fines of material
Electric elements
Function:electric unit to controlling the whole line running and stop
