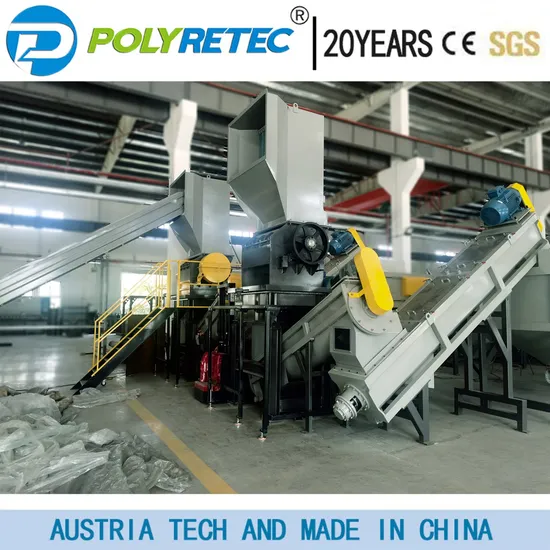

HDPE Waste Plastic Crushing Washing Recycling Line

Product Description

Soft plastic film washing line
Plastic film agricultural film washing line
Name: Plastic film agricultural film washing line
Raw materials: Plastic film / agricultural film / greenhouse film / film
01 - Project introduction
POLYTEC persistently adheres to the design concept of "SMART RECYCLING, HIGH-VALUE PLASTICS", concentrating on economy, practicality, and stable performance, continuing to seek breakthroughs in equipment production capacity, power consumption, water consumption, finished product loss rate, and degree of automation. In recent years, by actively absorbing Europe's valuable experience in film (PE) and woven bag (PP) recycling, and combined with our company's many years of waste plastic recycling experience, we Manufactured updated PP/PE floating washing line to realize efficient coarse crushing, fine crushing, washing and discharging, dehydration and semi-plasticization.
02 - Processing object
Plastic film/agricultural film/greenhouse film/film, etc.: Unweathered LDPE polyethene film (raw materials exposed in the field for more than three years have no actual reuse value) 03 - Technical characteristics

Model	Input capacity (kg/h)	Required Area (m2)	Installation power (KW)	Required compressed air (m3/min)	Average consumption (ton)
PP500	500	200	140-225	0.5	E: 67-225kw W: 2-6.5t
PP1000	1000	400	270-320	0.5
PP1500	1500	1000	500-570	0.8

05 - Advantages
1. Shredding system is designed specifically for film materials to create a uniform particle size which is easy for washing and drying. 2. High speed washing system optimized according to the specific material type liberates and separates contamination from film flakes. 3. Under water force-washing paddles in our washing tanks maximize the washing efficiency. 4. Mechanical (centrifugal and squeezing) and thermal drying systems control the moisture content of the finished product. 5. At < 5% moisture the material is suitable for high quality pelletizing. 6. Shredding, high speed washing and drying stages are optimized to avoid over processing which can cause material loss (fines creation). 7. Intelligent system automation ensures that components actions are sequenced and monitored. 8. Integrated systems to go from field to pellet.
06 - Process introduction This production line mainly recycles agricultural waste film (agricultural film/greenhouse film/film, etc.). At present, the agricultural waste film is processed in various parts of the country for centralized processing and recycling, and the degree of equipment automation is increased. POLYTEC has been involved in the manufacture of waste agricultural film processing and processing equipment for many years, and the equipment is constantly updated, improved and upgraded and solved many problems in the industry through our technologies. After the waste film is collected, it is pre-processed and cut or shredded so as to turn the large rolls of waste film into small pieces and then put it into the sand removal machine for sand removal treatment. Exorbitant sediment content will shorten the service life of the crusher and affect the cleaning effect. After sand removal, the film enters the crusher for fine crushing treatment. Water is added for crushing, which can play the role of preliminary cleaning. A friction washer is equipped at the bottom of the crusher, which can shake the sediment and dirty water on the material out. The spin-dried film enters the strong friction washer for friction cleaning. This section is filled with water for friction cleaning. Our company specially designs this machine for sand removal and cleaning of mulch film. The cleaning sediment is more than 99%. The cleaned film enters the floating washer and is then dug into the squeezing dryer for dehydration. Subsequent can be connected to a granulating line to make granules.
ABOUT US

Suzhou Polytec Machine Co LTD focuses on the R&D and manufacturing of complete set of waste plastic recycling and processing systems and has provided services to customers in more than 30 countries through high-quality customized solutions, professional real-time technology and after-sales service. POLYTEC is currently working on four directions: 1. Waste plastic cleaning and classification: waste plastic films, bags, barrels, bottles, etc. are broken and cleaned, and plastics of different materials are separated, which are directly used in downstream industries such as recycled plastic granulation; 2. Recycled granulation of waste plastics: recycled granulation after cleaning of factory materials and post-consumer plastics; 3. Development of key machinery for recycling and recycling: R&D and manufacturing of key models for different materials in different industries, and provide key equipment for various process routes; 4. Waste electronic waste treatment: Provide system-wide process design and development and reuse for the growing consumer electronic products. 5. Design and implementation of project engineering: Our company provides guidance on plant design layout in the early stage of the project, and the overall installation of on-site water and electricity

Technology:

With Austrian Technology & Made in China Complete machine range: waste plastic washing line and pelletizing line Use our own factories to manufacture waste plastic recycling machines With many patents

Team:

Our CEO with over 20 years' rich experience in international trade business Our staff have over 15 years' rich experience in machine R & D, manufacturing and testing field, assembling workers with over 5 years' rich experience in our industry

Certificates:

With CE certificate Can meet UL/ISO/ standards With more than 15 national patents.

Profession:

English, French are available Customized machines are welcomed Instructions and other files are equipped The machine supports the third-party inspection for quality assurance

Services:

Perfect pre-sales service and after-sales service Support machine testing by using customer's raw material After--sales machine testing service is available.

Sample projects:

We already provided machines for customers over 30 countries, such as America, Mexico and so on. Some projects can be visited for reference.
