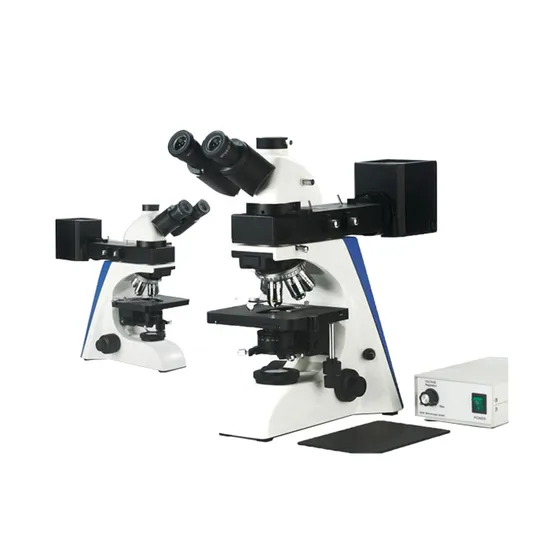

Mit300/500 Dark Field Objective Trinocular Head with Dual Transform Metallurgical Microscope

Product Description

MIT300/500 Dark field objective Trinocular head with dual transform Metallurgical Microscope Product Description
MIT300/500 Metallurgical Microscope
Detailed Photos
Objective specification: ( "√" Is Standard outfits, "○" Is Optional Accessories.)

	Objective	N.A.	Working Distance (mm)	MIT300/ MIT500	MIT300D/ MIT500D
Metallurgical LWD Infinity Plan Objectives	LMPlan FL 5× (Semi Apochromatic Objective)	0.15	21.00	√
	LMPlan FL 10× (Semi Apochromatic Objective)	0.30	20.00	√
	LMPlan FL 20× (Semi Apochromatic Objective)	0.40	15.00	√
	LMPlan FL 50× (Semi Apochromatic Objective)	0.55	10.00	√
	LPL 80×	0.80	0.85	○
	LMPlan 100×(Dry) (Semi Apochromatic Objective)	0.85	3.00	○
Metallurgical LWD Infinity Plan Objectives for Bright/Dark Field	M PLAN 5× BD	0.13	7.30		√
	M PLAN 10× BD	0.25	11.50		√
	M PLAN 20× BD	0.40	5.60		√
	M PLAN 50× BD	0.70	1.60		√

Product Parameters
MIT300/500 Metallurgical Microscope Outfit

Item	Specification		MIT300	MIT300D	MIT500	MIT500D
Eyepiece	WF10X/22mm (adjustable)		√	√	√	√
	WF10X/22mm (adjustable , reticule 0.1mm)		√	√	√	√
Metallurgical LWD Infinity Plan Objective	LMPlan FL 5×/0.15 (Semi Apochromatic Objective)	W.D=21.00mm	√		√
	LMPlan FL 10×/0.30 (Semi Apochromatic Objective)	W.D=20.00mm	√		√
	LMPlan FL 20×/0.40 (Semi Apochromatic Objective)	W.D=15.00mm	√		√
	LMPlan FL 50×/0.55 (Semi Apochromatic Objective)	W.D=10.00mm	√		√
	LPL80X/0.80	W.D=0.85mm	○		○
	LMPlan FL 100×/0.85 (Dry) (Semi Apochromatic Objective)	W.D=3.00mm	○		○
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field	M PLAN 5×/0.13 BD	W.D=7.30mm		√		√
	M PLAN 10×/0.25 BD	W.D.= 11.50mm		√		√
	M PLAN 20×/0.40 BD	W.D.= 5.60mm		√		√
	M PLAN 50×/0.70 BD	W.D.= 1.60mm		√		√
Seidentopf Trinocular Head	Inclined 30°,rotatable 360°, Interpupilary distance: 48mm~76mm Light distribution (both): 100: 0 (100% for eyepiece) 80:20 (80% for trinocular head and 20% for eyepiece)		√	√	√	√
Nosepiece	Quintuple		√		√
	Quadplex (specially for bright /dark field objectives M26x1/36")			√		√
Mechanical Stage	Stage size: 200mm x 150mm Travel range: 77mm x 52mm Stage fast lowering unit: Up-Down moving range can be increased 50mm.		√	√
	Stage size: 182mm x 140mm, Travel range: 77mm x 52mm				√	√
Polarizing Unit	Polarizer /Analyzer		√	√	√	√
Condenser	Abbe N.A.1.25 , with Iris Diaphragm.				√	√
Coaxial Coarse and Fine Focusing Unit	Coarse stroke: 25mm, Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter.		√	√	√	√
Reflecting Illumination	5WLED lamp (Input voltage:100V~240V)		√		√
	12V/50W Halogen lamp (Input voltage:100V~240V)		○	√	○	√
Transmitting Illumination	5WLED lamp (Input voltage:100V~240V)				√	○
	12V/30W Halogen lamp (Input voltage:100V~240V)				○	√
Filter	Blue		○	○	○	○
	Green/ Amber/ Grey		○	○	○	○
C-Mount	1 X /0.75X/0.5X( Focus Adjustable)		○	○	○	○

Note:"√"In Table Is Standard outfits, "○" Is Optional Accessories Certifications
