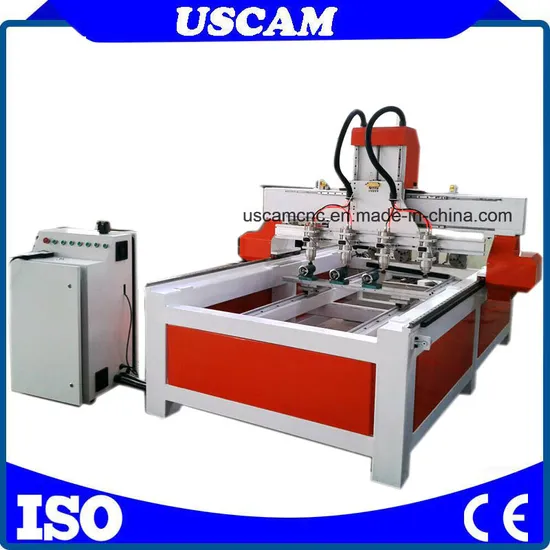

Table Leg Woodworking Engraver Machine with Multi Spindle Rotary

Product Description

Table Leg Woodworking Engraver Machine with Multi Spindle Rotary
Advantages
1. 8mm industrial class square tube strong bed. You can use our Uscam cnc router more than 10 years.
2. T-slot working table, pvc protection. We can also provide vacuum table and vacuum pump for your choice.
3. DSP control, very easy operation and support offline which means that you can still operate even power off.
4. Italy HSD Air cooling spindle, or water cooling spindle. International famous brand, good using and guaranteed after-sale service
5. Stepper motor with big power supply. Servo motor for your option.

Technical Parameters

Description	Parameter
X,Y,Z Working Area	1300*2500*200mm( optional)
Table Surface	Rotary device
Structure	8-10mm industrial class square tube strong structure
X Y Z Structure	Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel; all axis with Taiwan Hiwin 20mm square rails
Max. Working Speed	30000m/min
Spindle	Original Italy HSD Air cooling spindle or water cooling spindle(optional)
Spindle Speed	0-24000RPM
Drive Motors	stepper motors and drivers(servo motor for option)
Inverter	Fuling inverter
Control System	DSP handle controller with USB port or NC studio
Lubrication	Automatic Lubrication system
Tool sensor	Manual tool sensor calibration
X,Y Resolution	<0.01mm
Spare parts	Japan Omron limit switch for X, Y, Z axis; Highly flexible towline French Schneider electric parts
Software Compatibility	Artcam software for free, Type3 Software, Artcut Software
Working voltage	380V/50HZ/3PH

#All the working area and specifications can be customized according to your requests.
Machine parts
Applicable Industries
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.

♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
Samples of this machine
Package and Delivery
1. Packed by standard plywood case, it has strong bearing strength.
2. When importing, the plywood case is with fumigation-free, the procedure is simple.
3. Delivery Detail: within 7-15 days after received your payment.
FAQ
Q1: How to get the most suitable model with competitive price?
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ? Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
Q2: How about the delivery time after ordered?
The delivery time is about one week after ordered it.
Q3: Does machine comes with software?
We offer ArtCAM or Type3 software with machine.
Certifications
Our service
# 18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
Welcome visit our factory

Contact us
