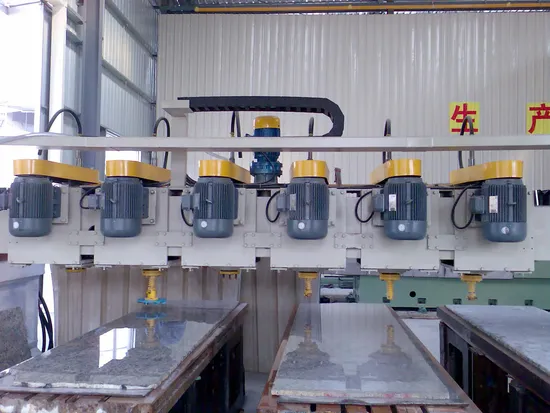

Bridge Type Stone Grinding Polishing Machine for granite slab
| US$12,800.00-24,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GBQM-900
Precision
Precision
Application
Granite
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Wet Grind
Certification
ISO, CE
Condition
New
function
polishing granite slab
Operation
Easy
main motor
5.5kw
Weight
6400kg
Color
customer needing
Transport Package
Water-Proof Plastic Film Package
Specification
8650*4700*2120mm
Trademark
Great Base
Origin
Fujian, China
HS Code
84642090
Production Capacity
300sets/Year
Product Description
Features:
The after-polished surface is with very high flatness and glossiness, as well as the processing costs is very low, because using the common abrasives to polish the ordinary granite can easily reach over 80degrees of glossiness. And it makes a feature of stable performance, easy operation, and high efficiency.
Compare to the Arm Polishing Machine, the glossiness is higher, and it saves your label. It is a preferred machine ideal for stone material processing.
Technical Data:
| Name | Unit | GBQM-600/8 | GBQM-900/6 | GBQM-1100/4 |
| Main motor | kw | 5.5*8 | 5.5*6 | 5.584 |
| Up/down stroke | mm | 120 | 120 | 120 |
| Max. polishing length | mm | 3000 | 3000 | 3000 |
| Max. polishing width | mm | 600 | 900 | 1100 |
| Min. polishing thickness | mm | 10 | 10 | 10 |
| Water consumption | l/min | 18 | 16 | 14 |
| Weight | kg | 7200 | 6400 | 5600 |
