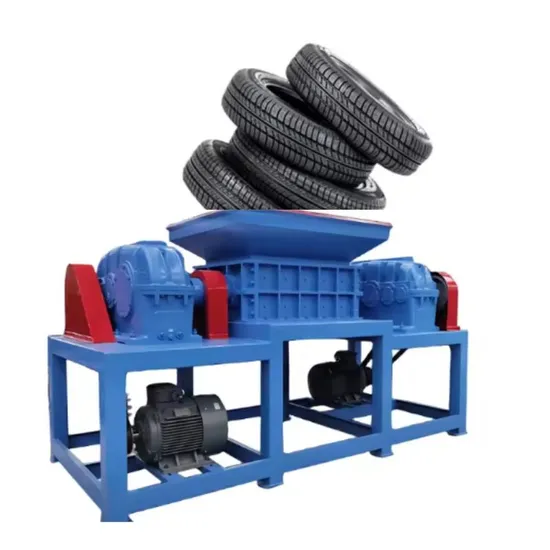

Waste large rubber tire recycling equipment price Waste small tire shredder
Double shaft shredder is specially designed for tire chips size separation.
Raw material: Truck and buses tires, car tires and passenger tires in general.
Final Product:Waste tires of less than 1200 mm and rubber materials can be crushed into 50mm-200mm block.
The shredded chips from prime shredder will drop on the rotary screen, and small chips will fall on the conveying belt, the big chips will be feed in the shredder for shredding and recycling again. The final chips will be around 50~60mm.
Therefore, to pre-shred tires into 50-200mm pieces, the preferred equipment is a dual-shaft shredder or a rotating mesh dual-shaft shredder.
Working principle of tire crushing and grinding production line
*First, the wire tire decomposing equipment breaks down the wire tires into blocks.
*Then the tire pieces are broken into (5-10cm) pieces by tire shredder.
*After passing through the steel wire separator: rubber and steel wire are separated and processed into rubber particles. (10mm-20mm).
* In rubber granulator: crush rubber granules to smaller sizes (1mm-7mm).
*After passing through the vibrating screen: separate the rubber particles of different sizes, and send the oversized particles back to the crusher for secondary crushing.
*Then fiber separator: remove foreign matter and fibers, and then enter the normal temperature rubber mill for fine grinding and process into fine rubber powder with a fineness of 5-80 mesh.
*Finally bagged and sold after magnetic separation
Detailed Photos
Working method: low speed high torque shear crushing, crushing soft and hard materials, low noise, low dustDrive mode: electric motor + gearboxCabinet type automatic positive and negative conversion distribution cabinet, stable control performanceOverload protection When the device is overloaded, it automatically stops reversing and automatically returns to unloading. After unloading, the device resumes to advance.Blade material skd-11,55sicr(customizable); 9CrSi for detachable blade headThe shredding blade and shaft are fixed in hexagonal shape to ensure good torque transmission, easy disassembly and easy maintenance.
According to the actual situation of customers, the design and configuration of hopper/loading conveying device/discharging conveying device/magnetic separation
Product Parameters

Model	MCS-800	MCS-1000	MCS-1200
Motor Power (KW)	15/30/60	37	44/90/150
Blade Diameter (mm)	∅270-450	∅270-450	∅320-520
Shaft Speed (RPM)	10-32	10-32	7.5-32
Shredding Chamber Length (mm)	800	1000	1200
Blade Material	skd-11/h13	skd-11/h13	skd-11/h13
Blade Thickness (mm)	20/30	30/40	30/40
Machine Size (mm)	2700×1300×1850	3300x1900x2200	3600×2000×2200
Machine Weight (kgs)	2300	5200	6400

Model	MCS-1600	MCS-1800	MCS-2000	MCS-2200
Motor Power (KW)	90	180/220	180/220	220
Blade Diameter (mm)	∅450-800	∅450-800	∅450-800	∅450-800
Shaft Speed (RPM)	5.5-14.5	5.5-14.5	5.5-14.5	5.5-14.5
Shredding Chamber Length (mm)	1600	1800	2000	2200
Blade Material	skd-11/h13	skd-11/h13	skd-11/h13	skd-11/h13
Blade Thickness (mm)	50/75/100	50/75/100	50/75/100	50/75/100
Machine Size (mm)	5500×2200×2600	7000×3100×4000	7500×3500×4400	8000×4000×5000
Machine Weight (kgs)	30000	34000	40000	45000

More details Model configuration can be customized according to customer needs!

The shredder machine can easily pre-crush:
•plastic sheets;
•electronic waste;
•scrap (components,subassemblies;consumables);
•metals (lead,aluminum,copper,cable,barrels,sheet scrap,sheet metal pieces left over from production processes);
•aluminum cans;
•wood (wooden pallets or fruit boxes);
•plastic (plastic bottles or canisters);
•waste tire,rubber;
•waste household appliances;
•paper waste (cardboard,newspaper,office paper,books,magazine,kraft paper,paper core,cardboard tube,paper packaging material);
•textiles (rags,garments,carpet);
•animal bones and organic waste. Packaging & Shipping
Small shredding machine wooden box packaging delivery, more than 1000 shredding machine container delivery.
